Description

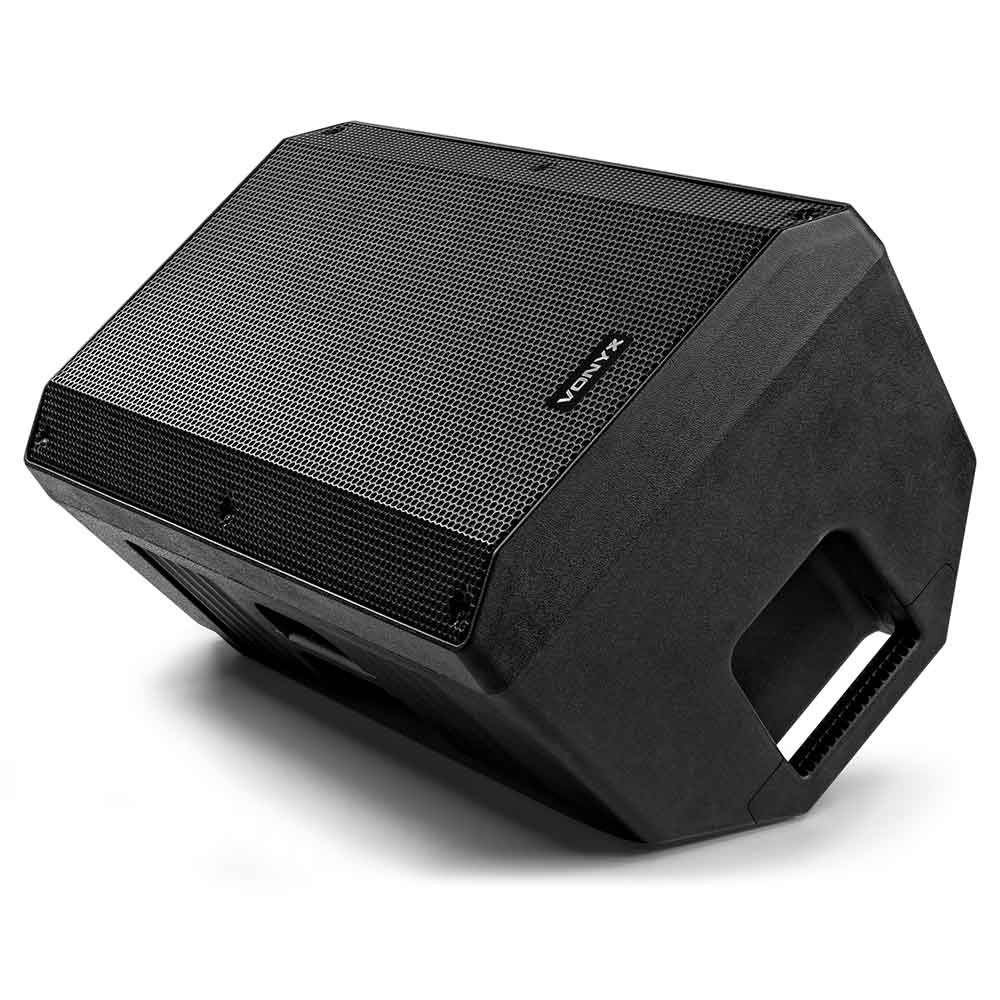

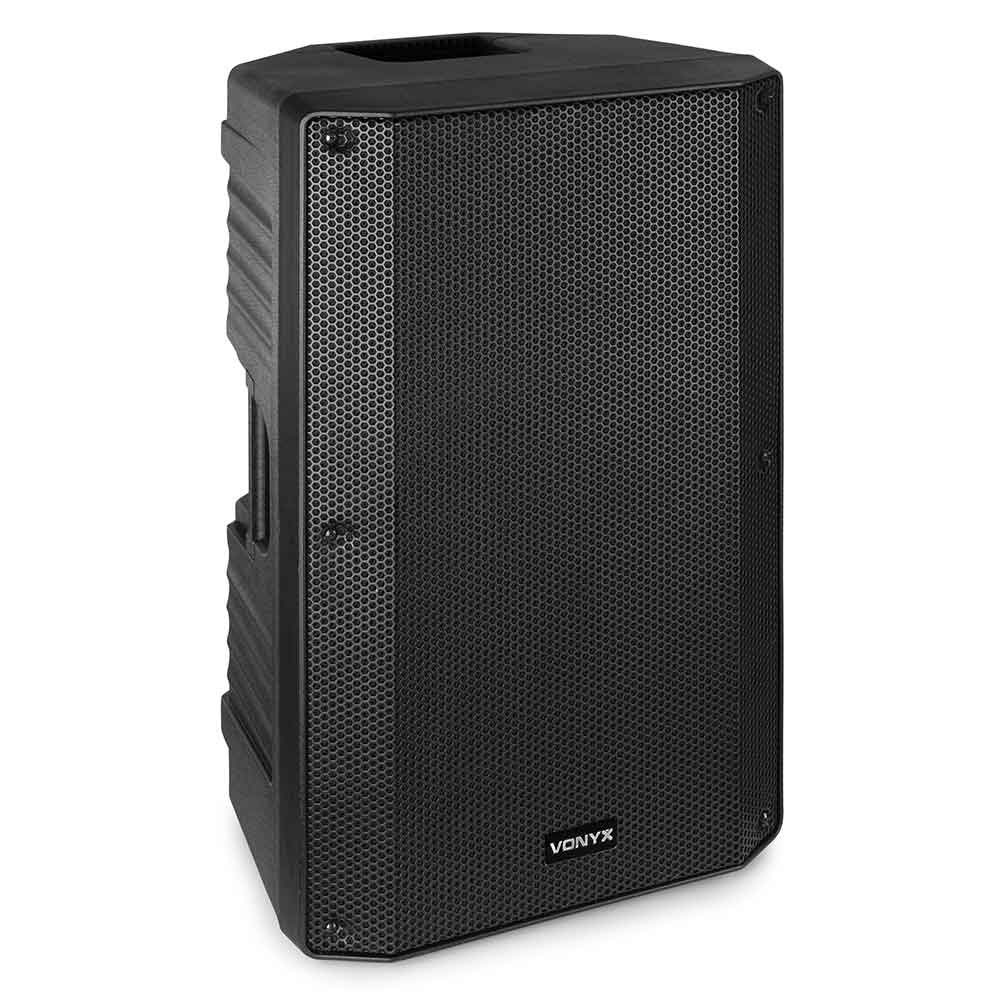

Vonyx VSA12BT – Active Speaker 12″ 800W Bluetooth
The Vonyx VSA12BT is an Active Speaker 12″ 800W Bluetooth. It is part of the VSA series that consists of a range of high-power speakers. It features 2x built-in amplifiers (LF amplifier and the HF amplifier) for great performance. The built-in amplifier unit is equipped with a BT receiver and USB port for MP3 playback.
The VSA12BT also includes a bright LCD display with ID3 Tag. This series has been designed in a sturdy ABS construction both to handle the power and is still lightweight enough for mobile use.
The perfect speaker for any DJ or live performer but also suitable for monitor use or club installation.
Rear Panel Functionality
On the rare panels of VSA12BT are 2x Mic inputs. You can use either a 6.3mm Jack balanced or an XLR balanced cabled microphone. Each input has a dedicated Mic Level knob. Additionally, the Line Input is also present which uses an XLR 3-pin connector for a Line Signal Input. A dedicated Line Level knob is also present for controlling volume on this Line Level input. Furthermore, 2x RCA connectors are available so you can use an RCA line signal input instead. Also included is an Auxiliary 3.5mm input connector.
The Line out on the VSA12BT uses an XLR 3-pin connector for a Line Signal Output. The rear panel also consists of a Master Volume knob as well as a Treble and Bass knob for essential EQ functionality. For extra versatility each speaker includes a 35mm pole socket making it suitable for stand mounting applications.
- 800W Bi-amplified 12″ speaker
- Built-in Multimedia-player (USB)
- Digital LCD display with ID3 Tag
- Using BT wireless technology for audio streaming
- Built-in Equalizer with 5-band control
- Guitar, Line and microphone inputs
- Built-in 2-way active crossover
- Angled design for use as a stage monitor
- 35mm socket for tripod or pole-mounting
- Including remote control
Supplied features: Speaker pole mount
Input connections: 3.5mm Jack, 6.3mm Jack, RCA, USB, XLR (3-pin)
Output connections: XLR (3-pin)
Speaker type: Amplified
Amplifier type: Class AB
Output power: Max: 800W
Output power: 400W
Frequency response: 40Hz – 20.000Hz
Diameter tweeter: 1″
Tweeter Type: High Compression Driver
Diameter woofer: 12″
Magnet type: Ferrite
Impedance: 4 Ohm
SPL max: 125dB
Power supply: 220-240VAC 50Hz
Dimensions (L x W x H): 315 x 380 x 595mm
Weight: 12.90 kg
