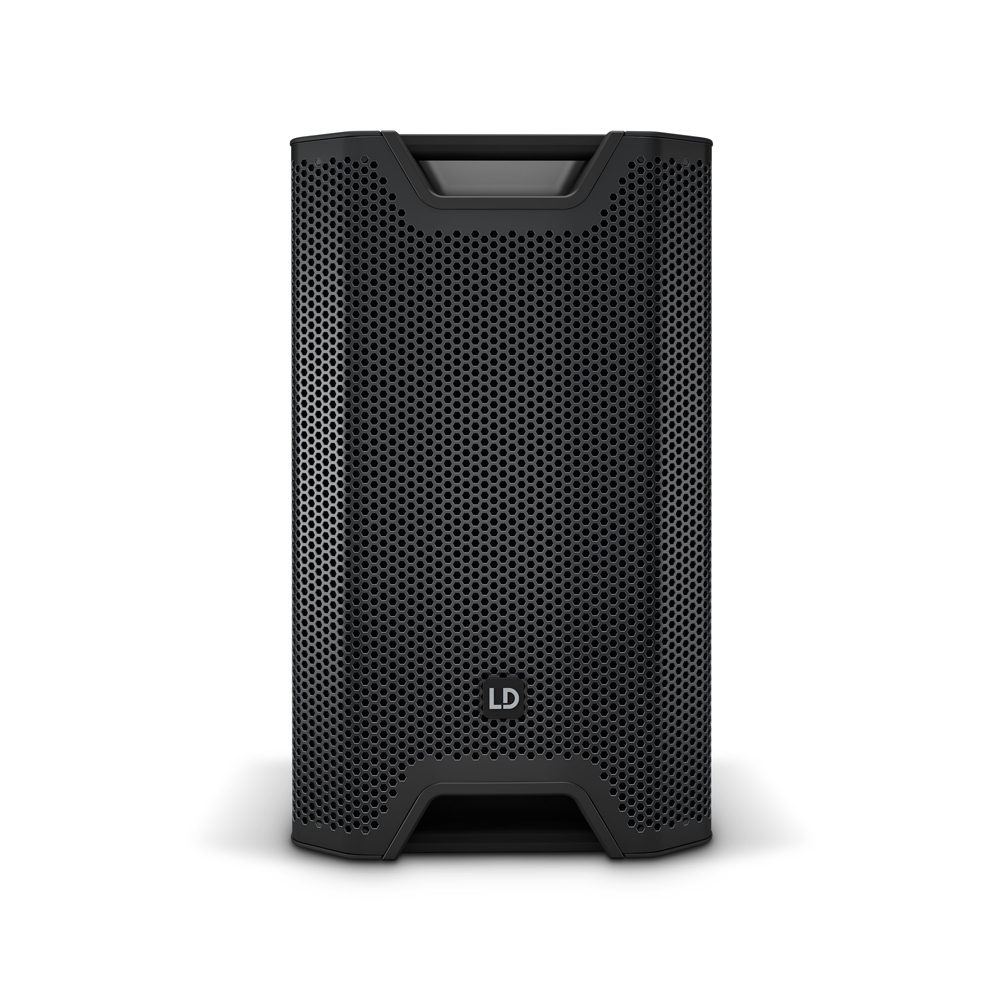

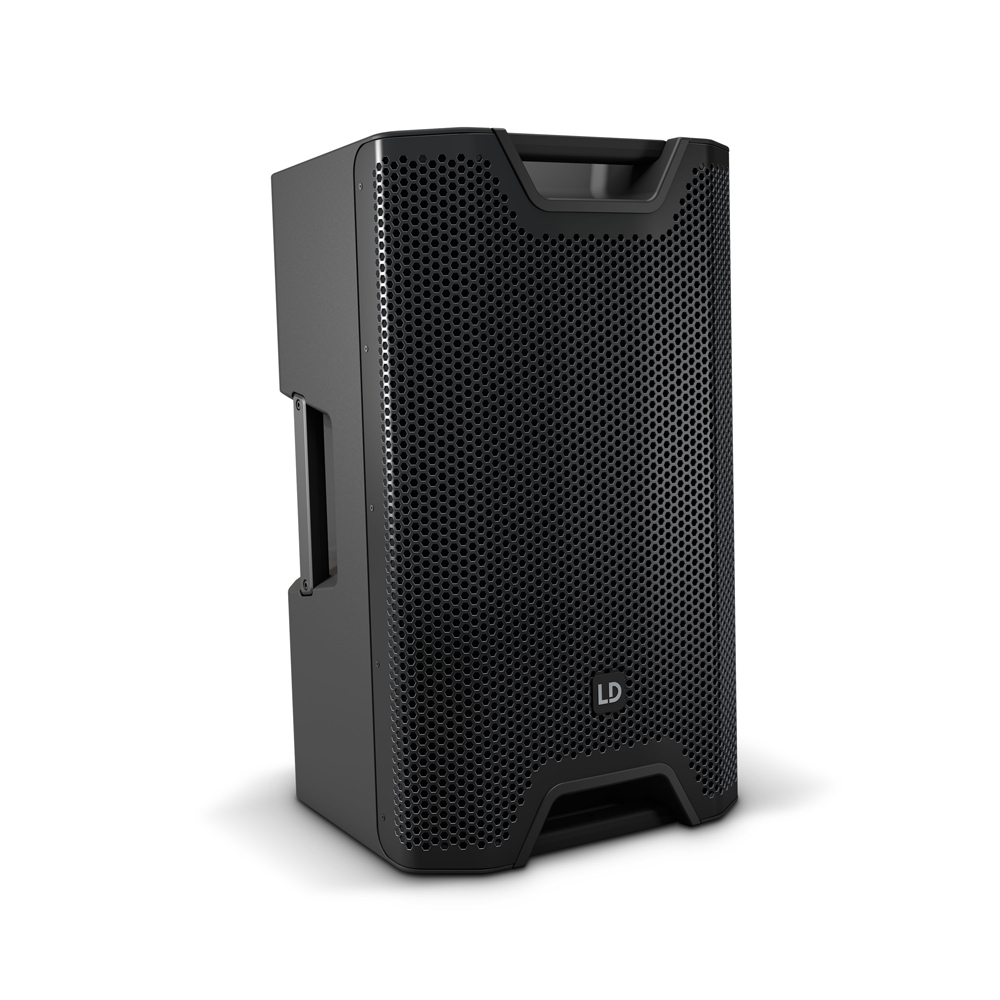

LD Systems ICOA 12 A 12 Inch Active Coaxial PA Speaker
SKU: LDICOA12A
$749.00
In Stock
This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this aktive 12″ loudspeaker exceptionally flexible.
The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it’s excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 300 W RMS performance.
Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.

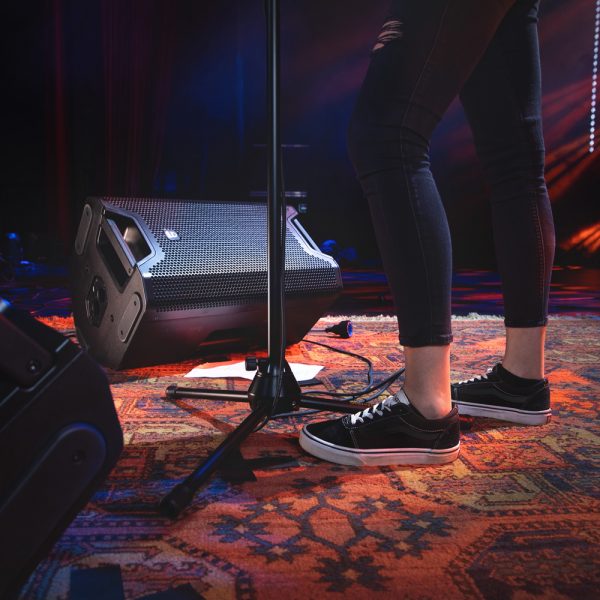

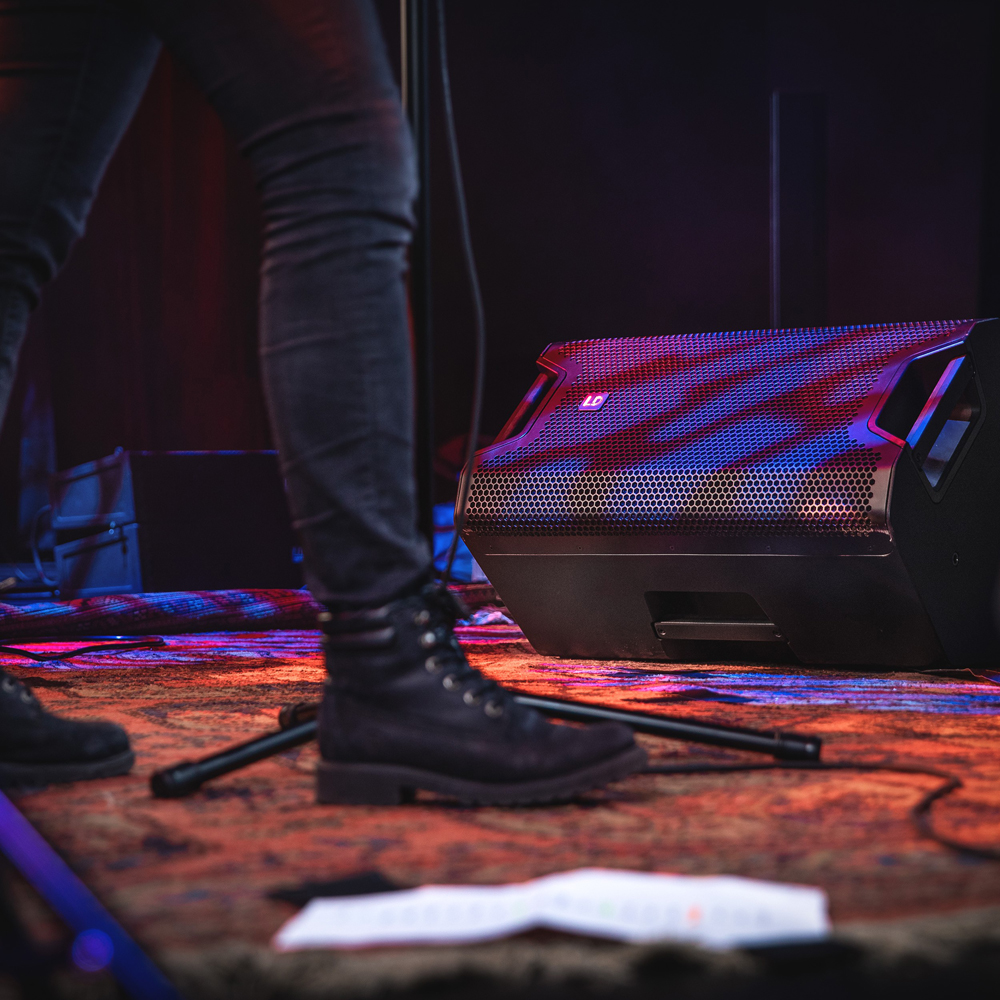

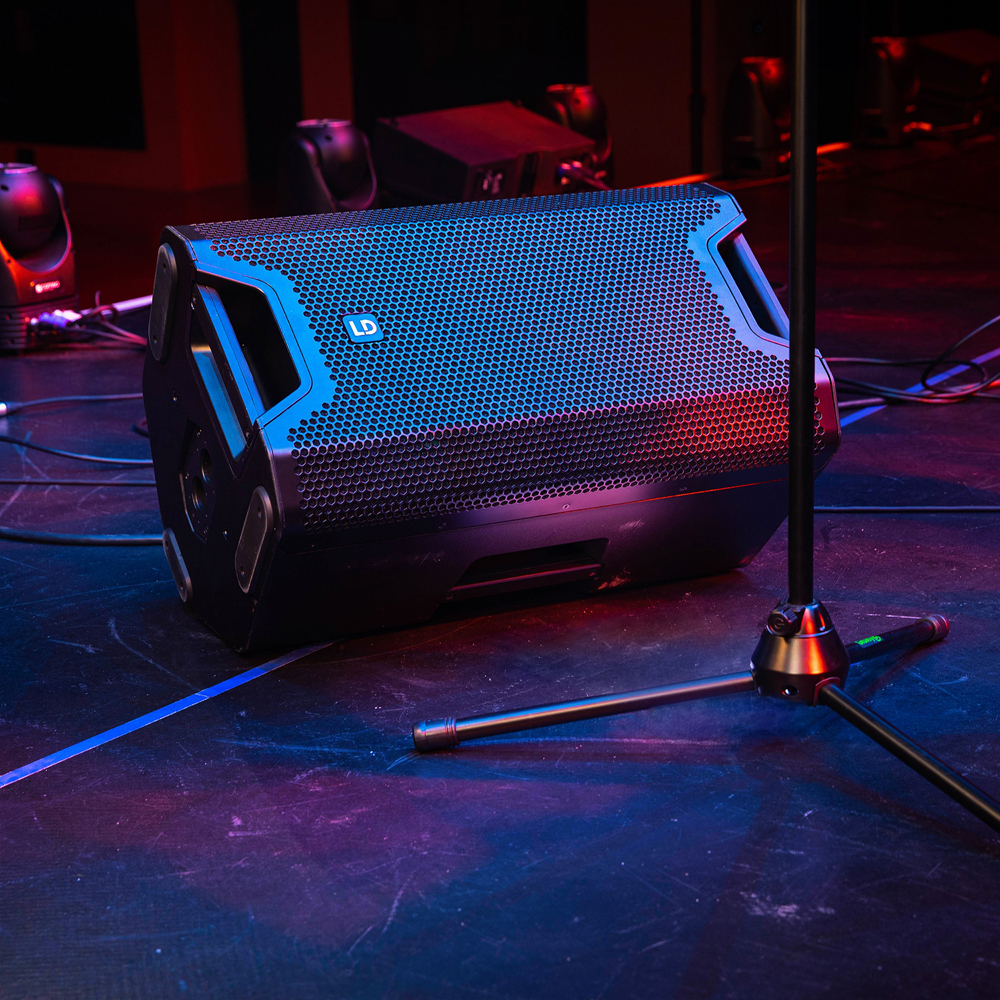

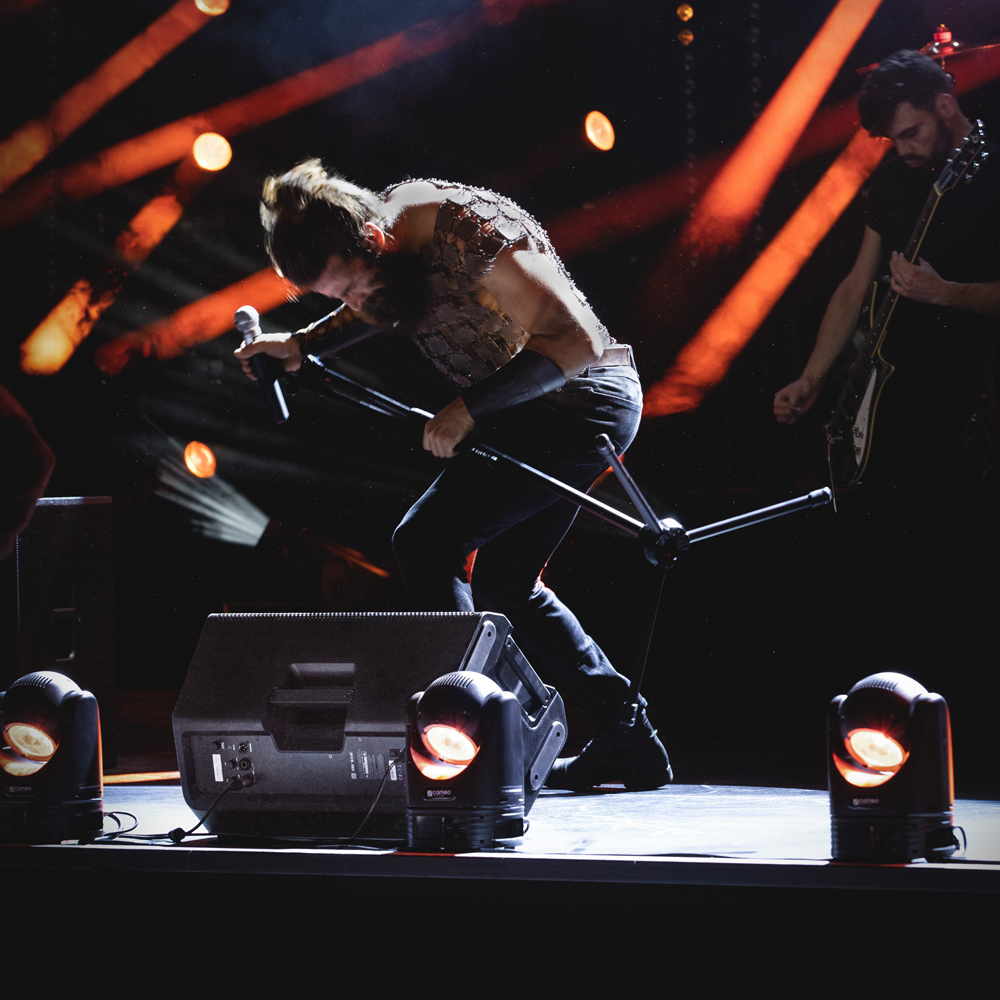

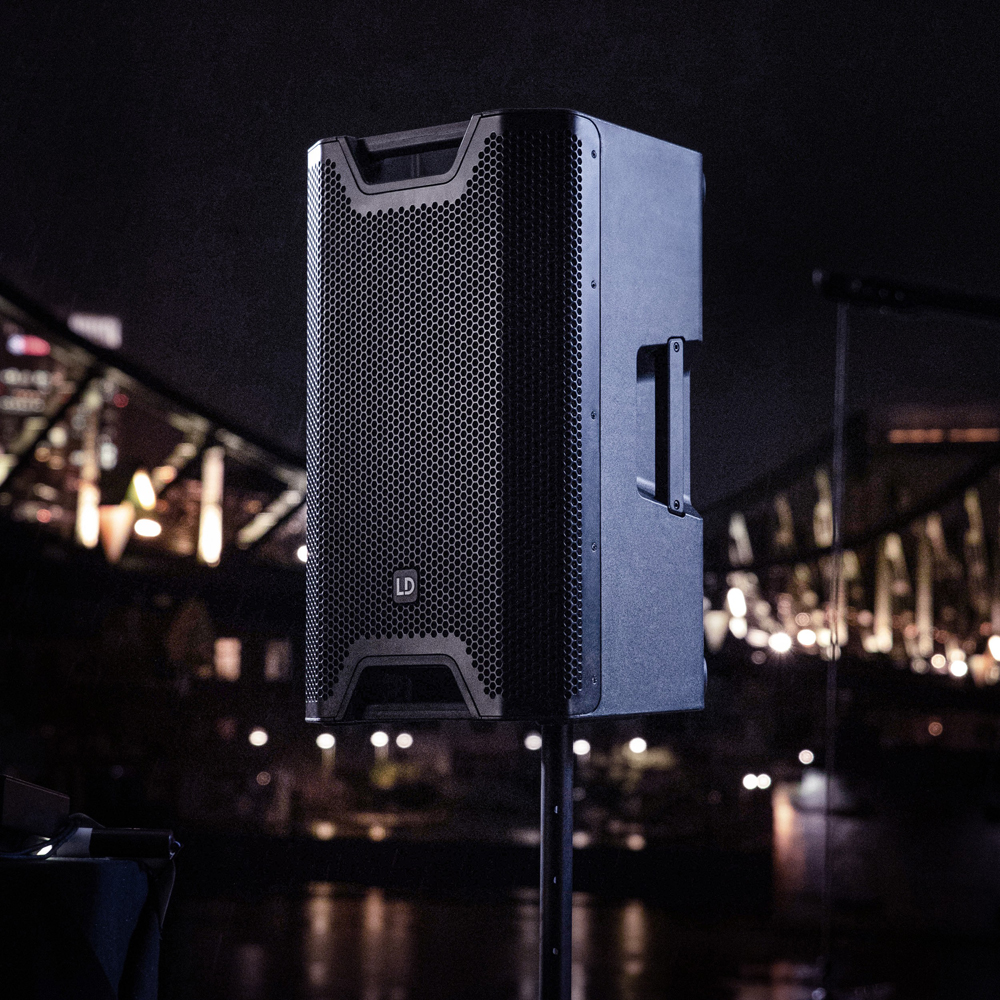

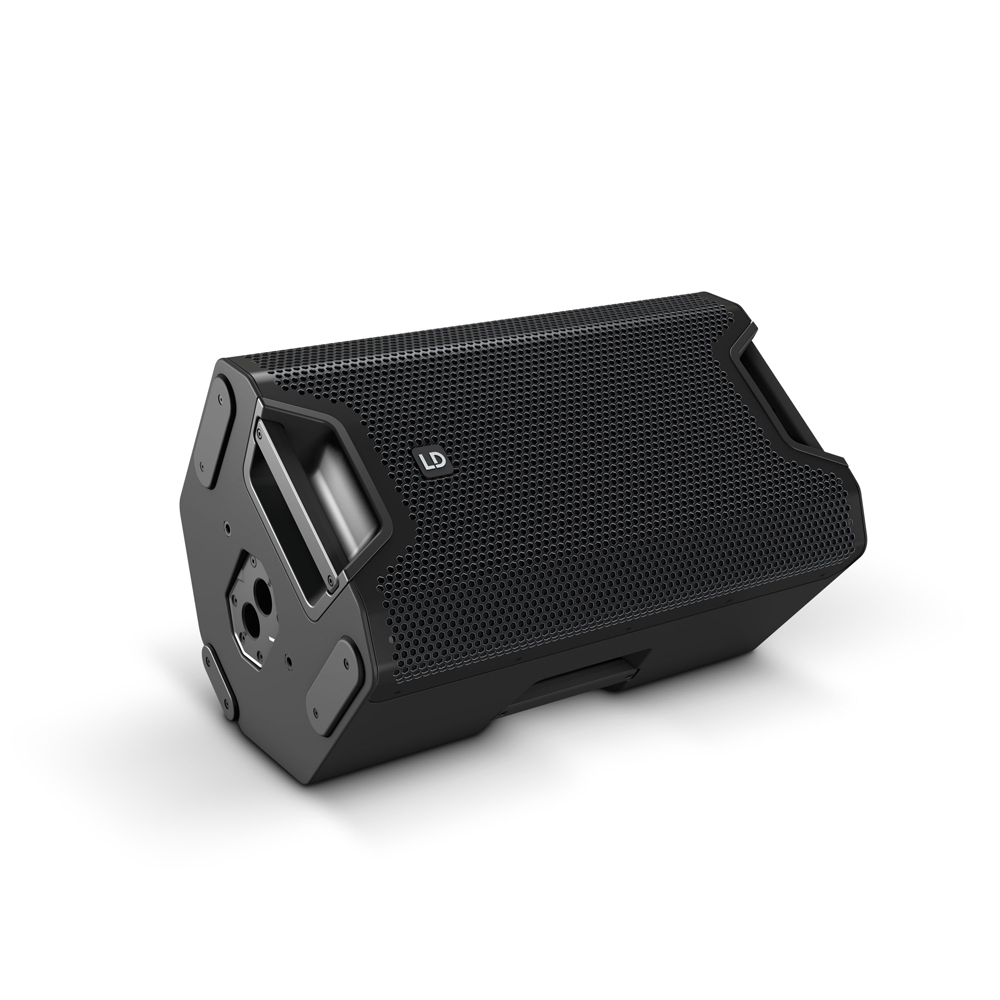

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.
Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.
SPECIFICATIONS
- A genuine all-rounder for full-range, satellite and monitor applications
- 126 dB max. SPL and 1200 W peak power

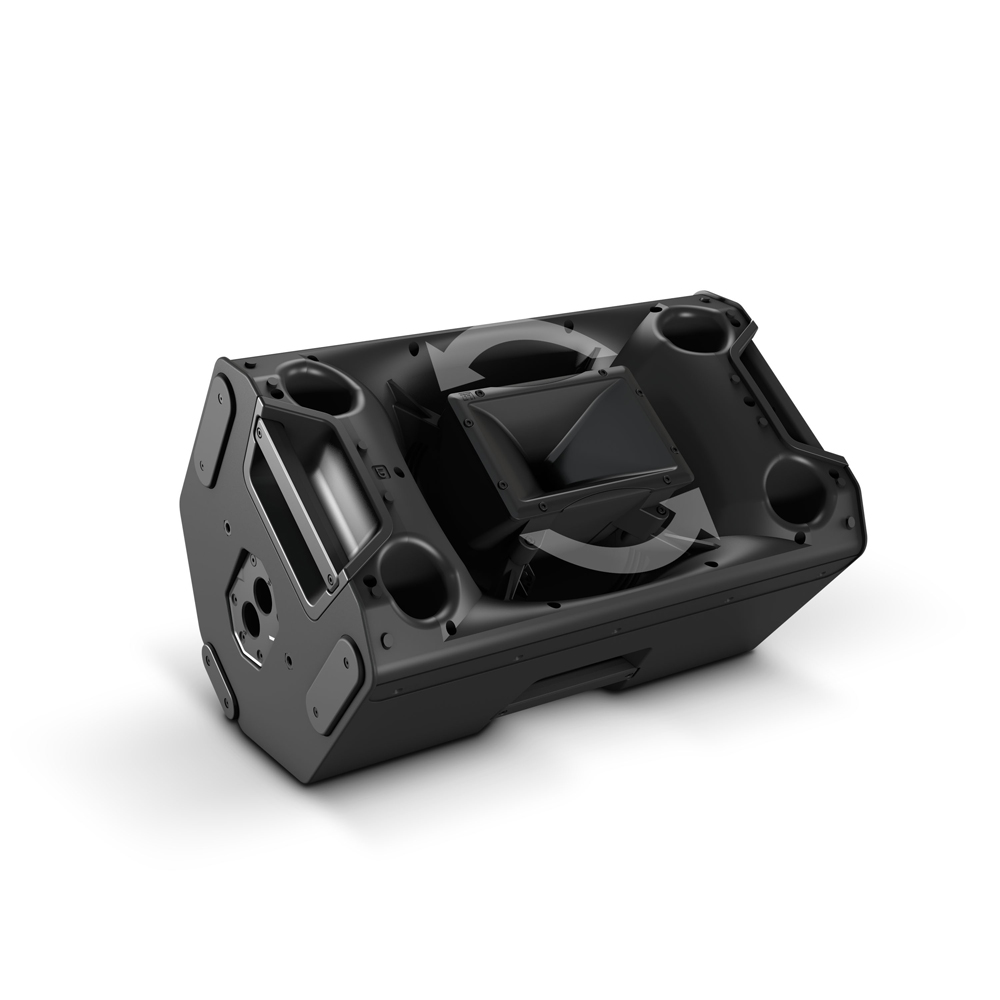

- Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn
- Horn-loaded woofer
- DynX DSP with 4 presets, 3-band EQ and delay function

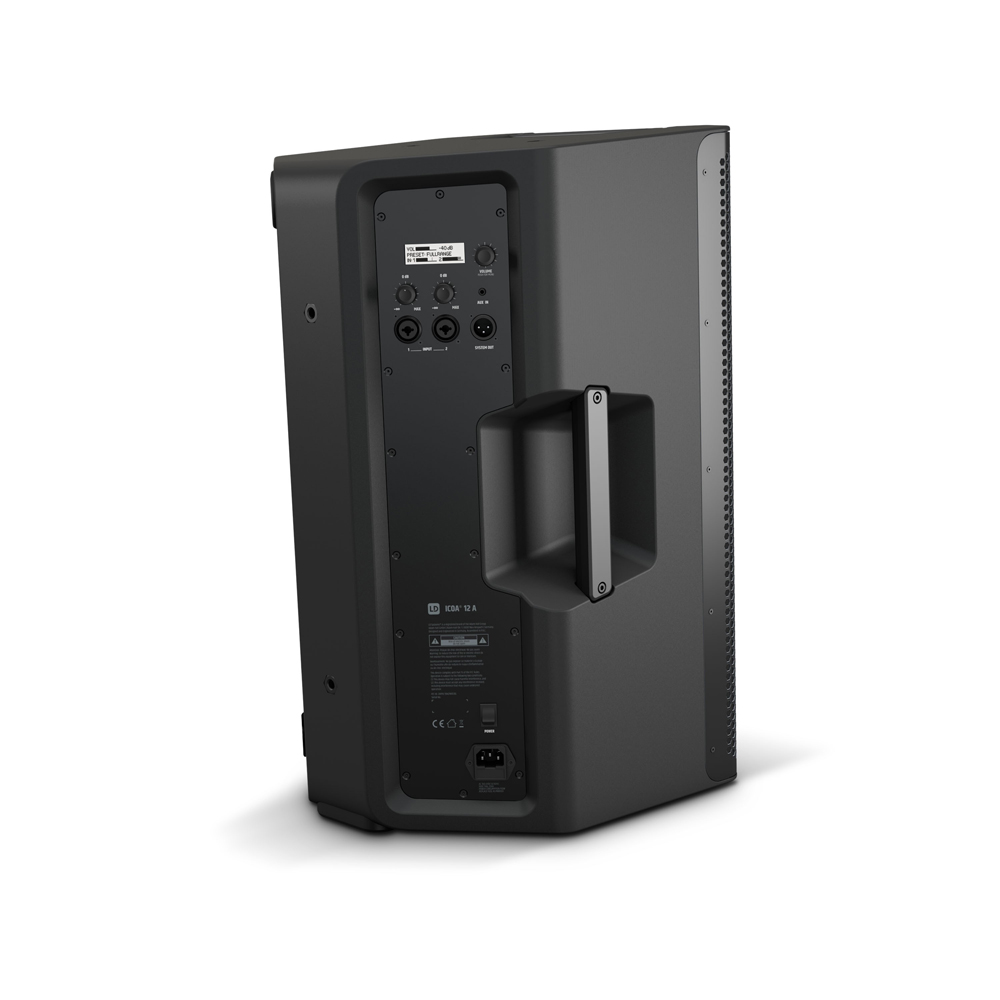

- 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model

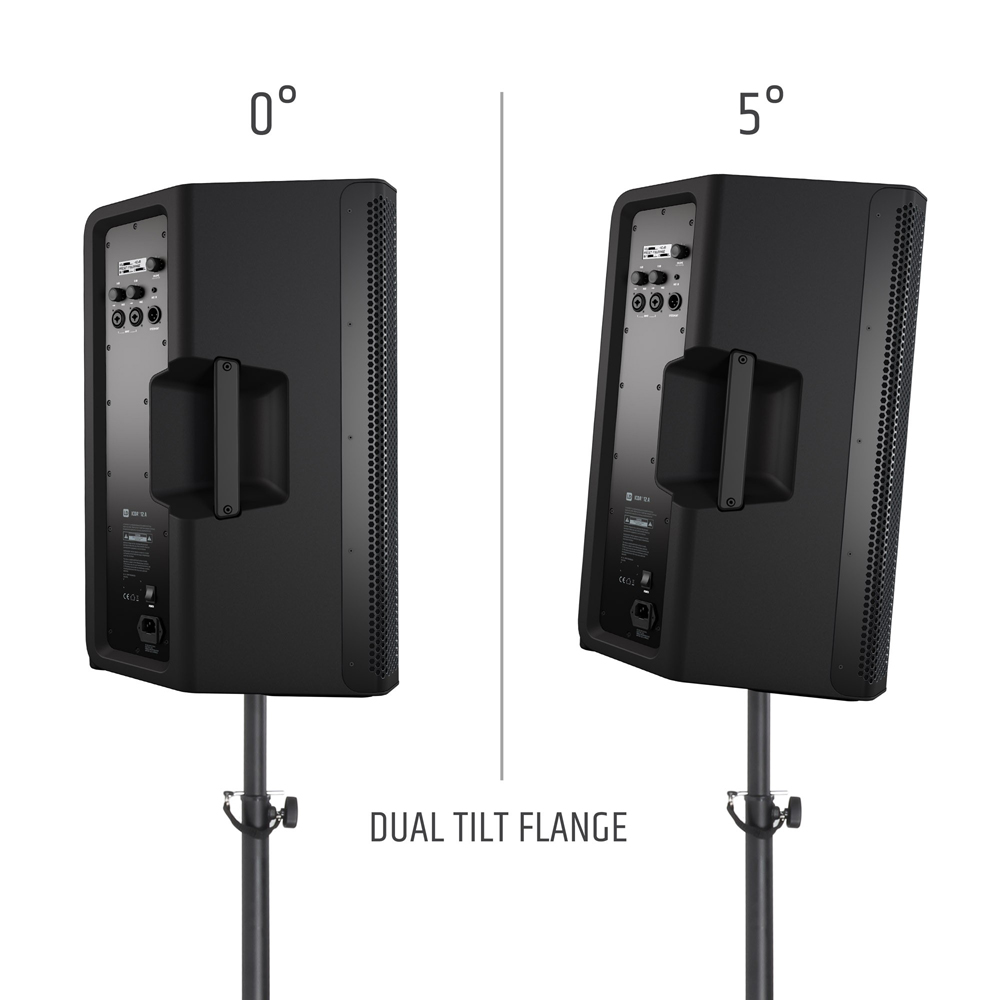

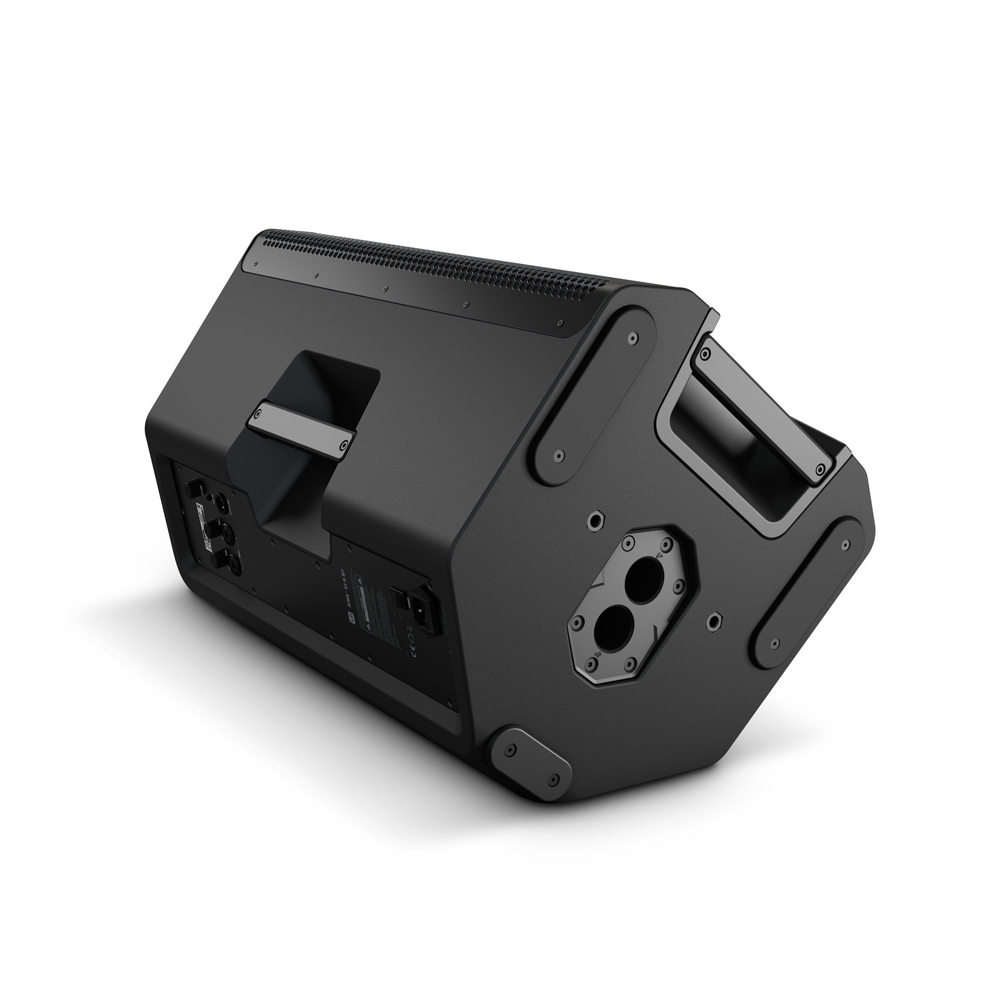

- 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
- Shock-resistant front grille for optimal protection of the speaker
- 4 aluminium grips with ergonomic, rubber surface
- Extensive, optionally available accessories for installation and transport
TECHNICAL INFORMATION
Product type | PA loudspeaker |
---|---|
Low/mid driver dimensions | 12 ” (304.8 mm) |
Woofer magnet | Ferrite |
Woofer brand | Custom-made |
Horn | BEM optimized CD Horn |
HF driver dimensions | 1 ” (25.4 mm) |
HF driver magnet | Ferrite |
HF driver brand | Custom-made |
HF driver voice coil | 1 ” (25.4 mm) |
Amplifier | Class D |
Dispersion (H x V) | 90 ° x 50 ° |
RMS | 300 W |
Peak power | 1200 W |
Frequency response | 50Hz – 20kHz |
Crossover frequency | 2 kHz |
Max. SPL (peak) | 126 dB |
Protection circuits | Multiband limiter , over voltage , over-current , thermal overload |

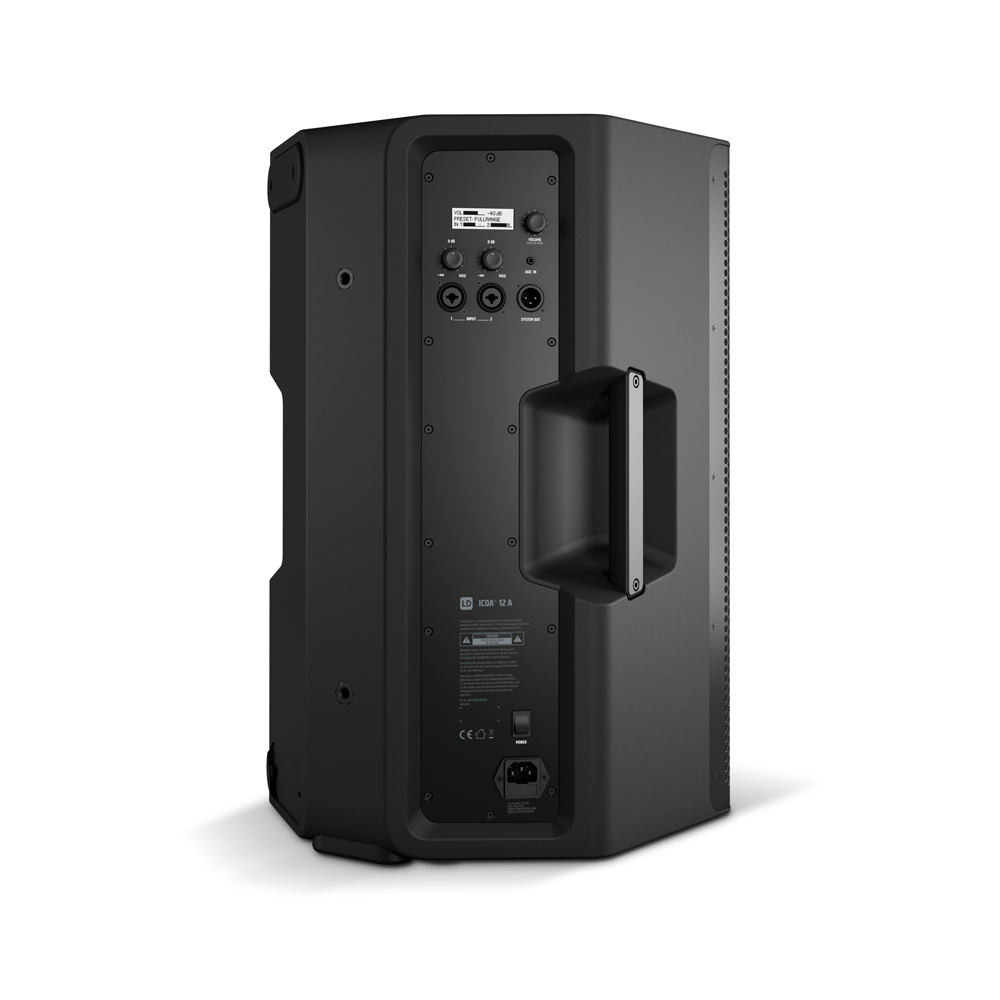

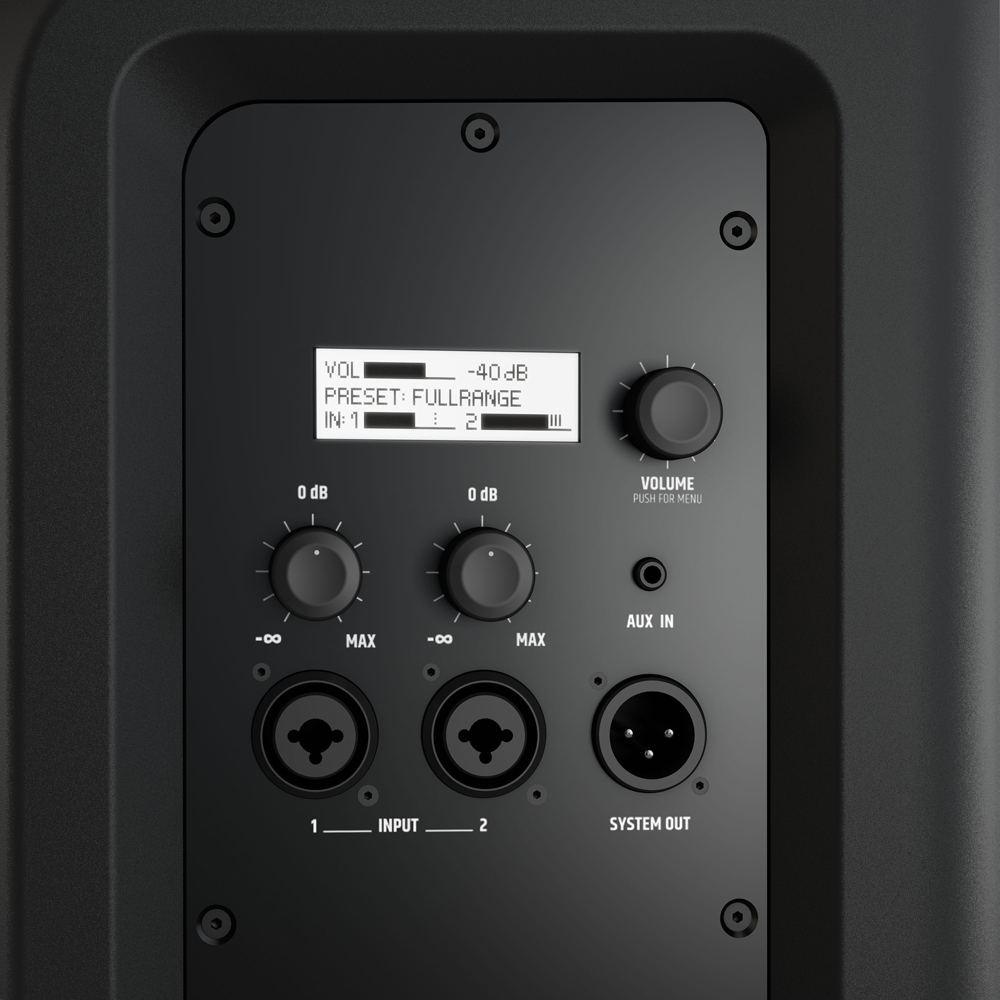

Controls | 2 x gain , On / off switch , Rotary/push encoder |
Indicators | LC display |
Mic/ line inputs | 2 |
Mic-/ Line Input Connectors | 6.3 mm jack Combination sockets (symmetrical) , XLR |
Line inputs | 1 |
Line input connectors | 3.5 mm TRS |
Line outputs | 1 |
Line output connectors | XLR |
Power consumption | 150 W |
Ambient temperature ( in operation ) | 0 – 40 °C |
Operating voltage | 100 V – 240 V AC / 50 – 60 Hz |
Relative Humidity | < 80 %, not condensing |
Fuse | T4AL 250 V |
Cabinet material | polypropylene |
Cabinet construction | vented |
tripod flange | 32 °F , 36mm flange , 5° |
Monitor angle | 55 ° |
Dimensions: | 375 x 635 x 396 mm |
Weight | 19.95 kg |
Accessories (included) | Power cord |
