Description

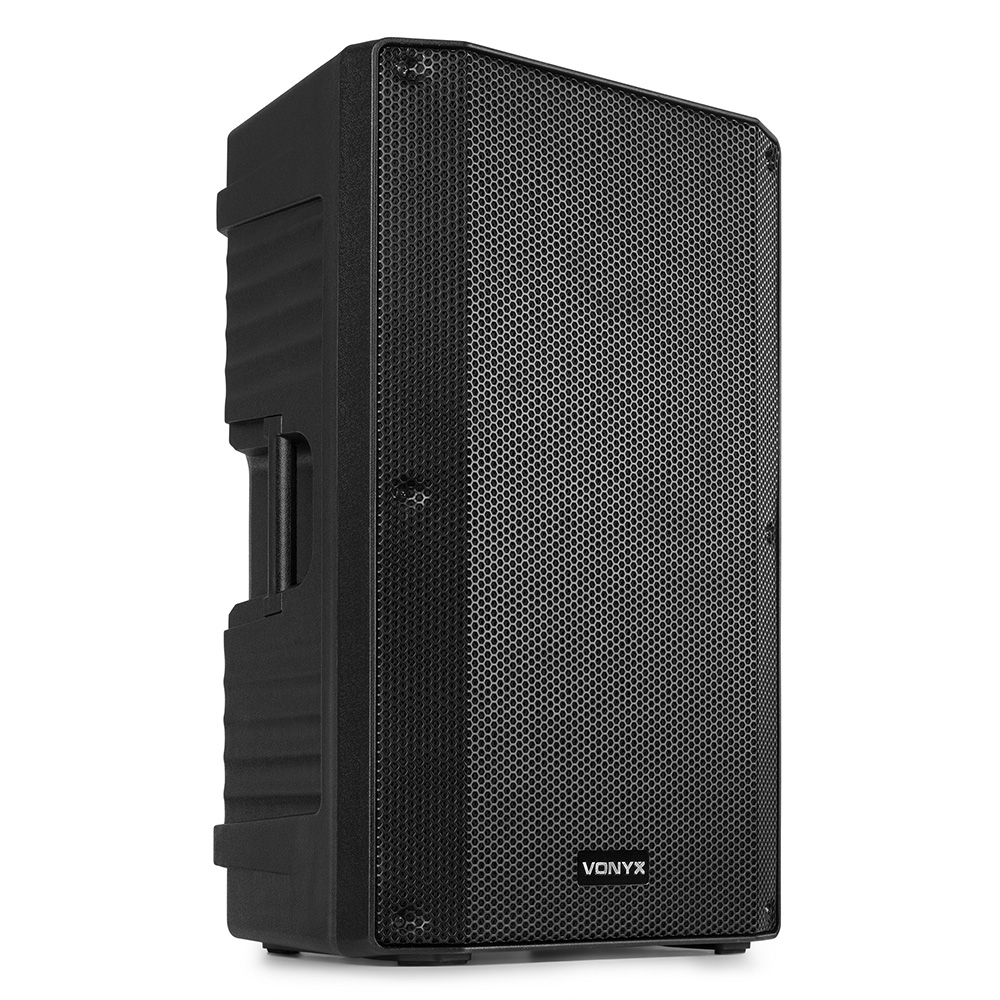

The VSA12 is a powered 12″ PA speaker made for great performance. The bi-amplified 2-way designed allow for improved power and effecincy with a separate amplifier for the HF and LF drivers. This series has been designed in a sturdy ABS construction both to handle the power and still lightweight enough for mobile use. The perfect speaker for any DJ or live-performer but also suitable for monitor use or club installation.
Key Features:
- 800W Bi-amplified 12″ speaker
- Guitar, Line and microphone inputs
- Built-in 2-way active crossover

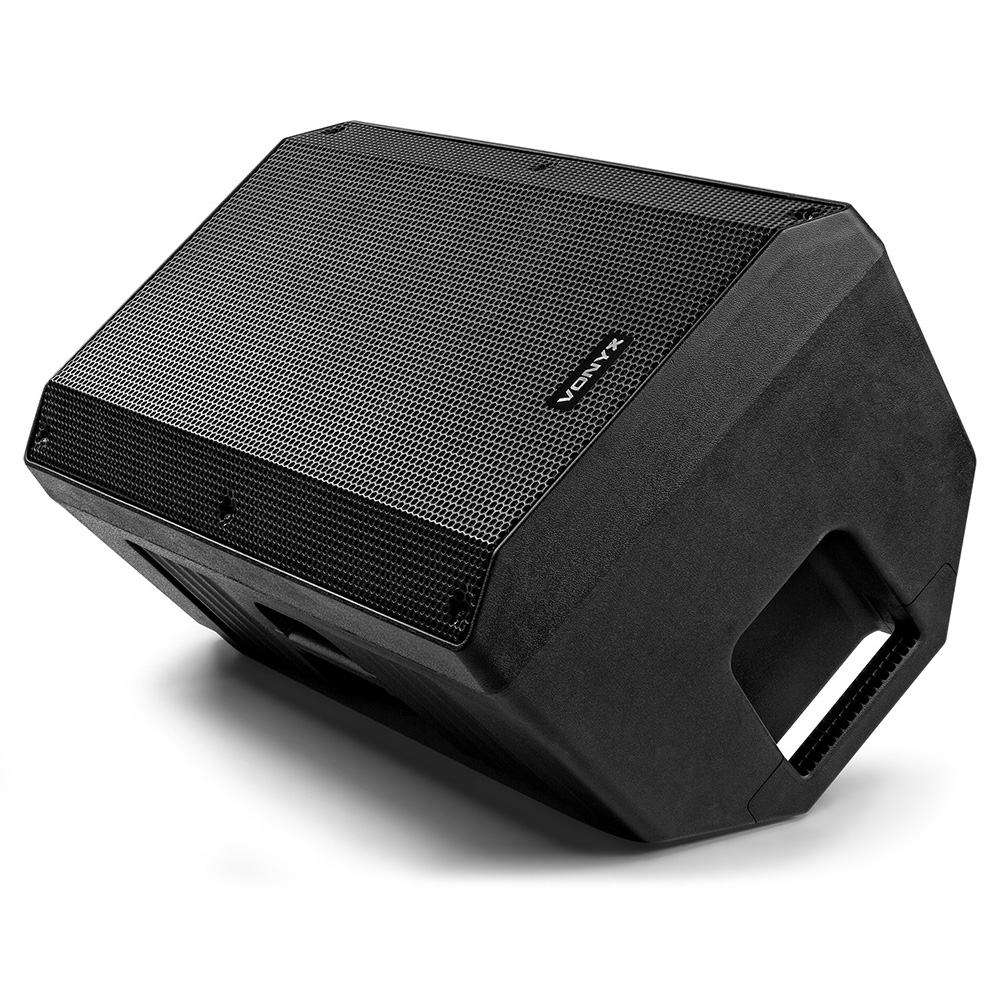

- Angled design for use as stage monitor
- 35mm socket for tripod or pole-mounting
Technical Data
| Input Connections | 3.5mm Jack, 6.3mm Jack, RCA, XLR (3-pin) |
|---|---|
| Output connections | XLR (3-pin) |
| Speaker type | Amplified |
| Amplifier type | Class AB |
| Output power: Max | 800W |
| Output power | 400W |
| Frequency response | 40Hz – 20kHz |
| Diameter tweeter | 1″ |
| Tweeter type | High Compression Driver |
| Diameter woofer | 12″ |
| Magnet type | Ferrite |
| SPL max | 125dB |
| Power supply | 220-240VAC 50Hz |
| Dimensions (L x W x H) | 315 x 380 x 595 mm |
| Weight | 12.8 kg |
