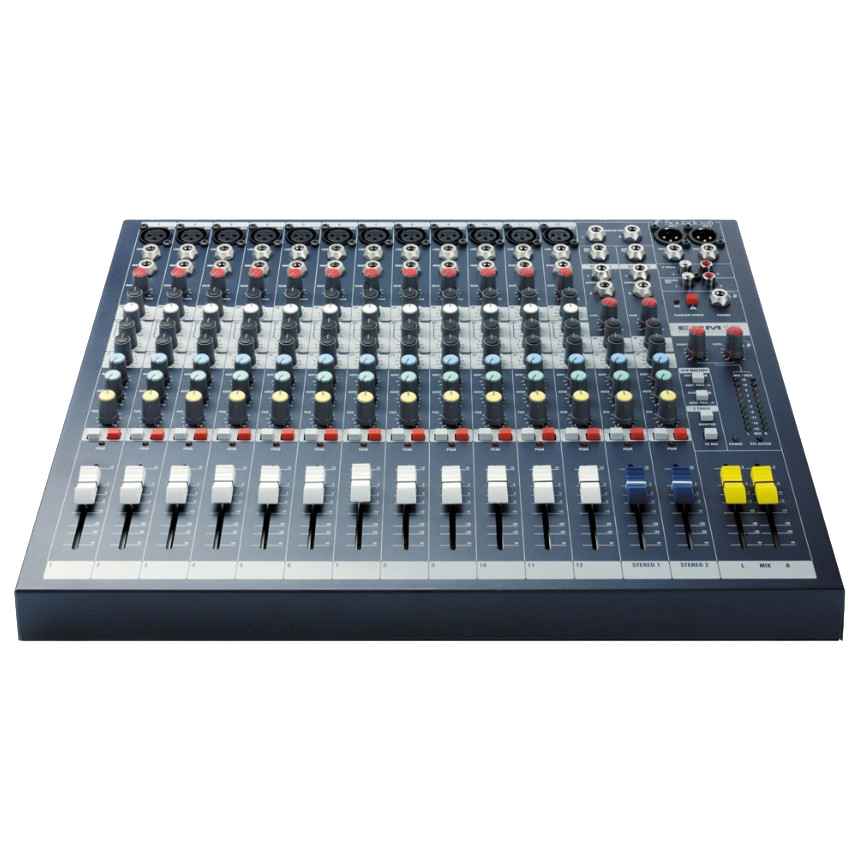

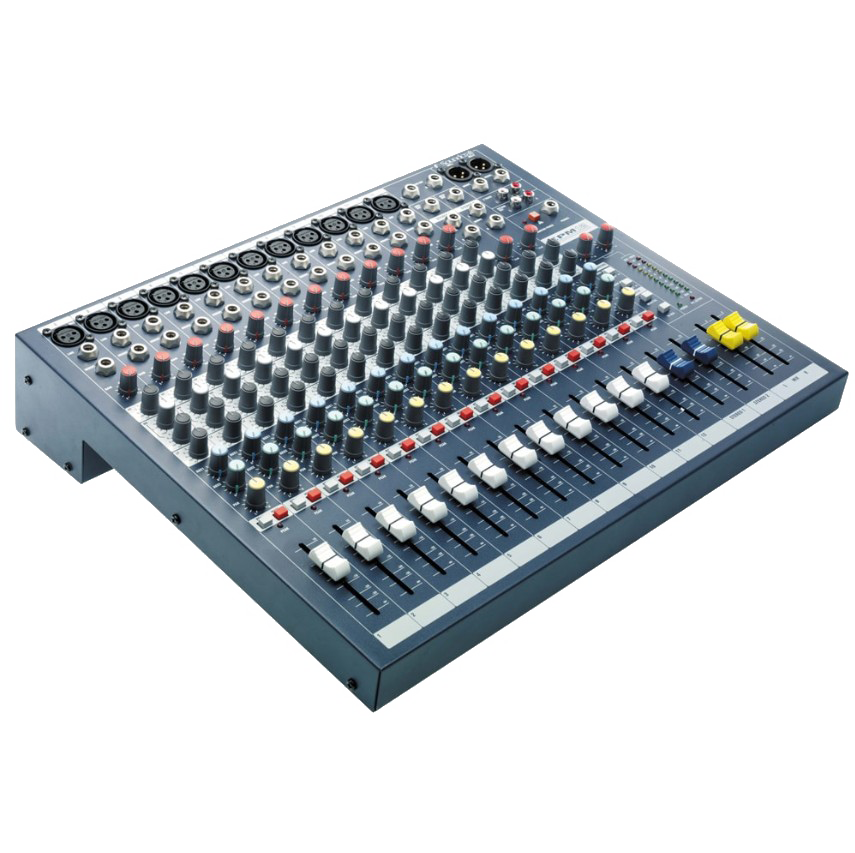

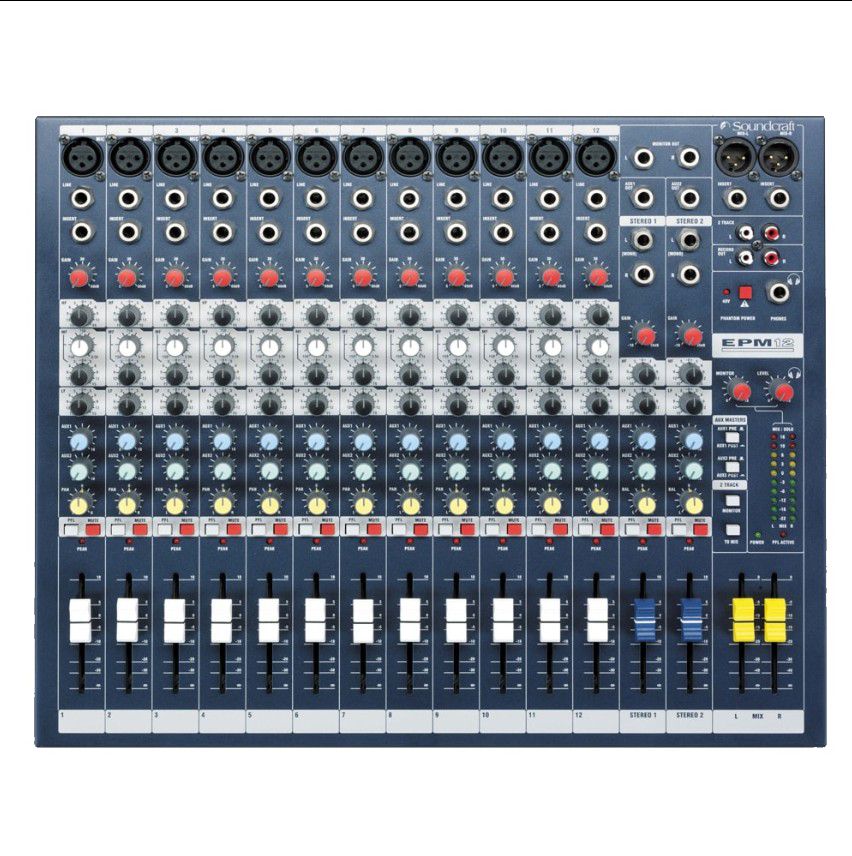

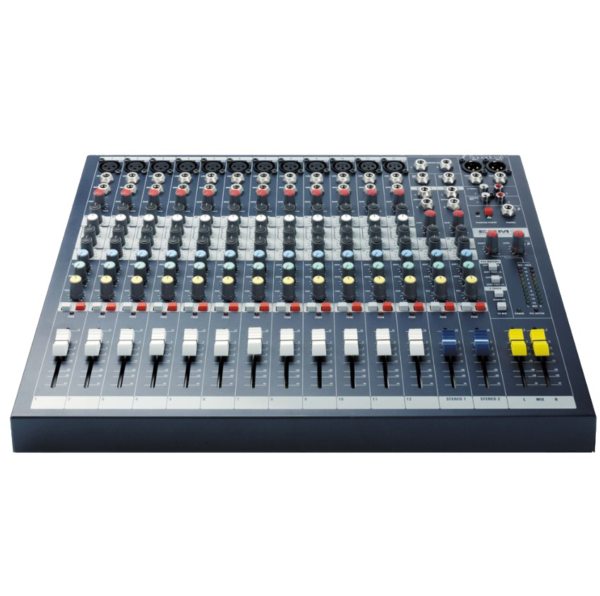

Soundcraft EPM12 Analogue PA Mixer 12 Channel

The Soundcraft EPM12 is a high-quality 12-channel analogue PA mixer built with an emphasis on audio performance. Simple and logical layout make operation and adjustment a breeze, making it ideal for any small PA application. Surface mount technology is used throughout, using close-tolerance components for high accuracy and repeatable settings for EQ and gain controls. The highly-transparent GB30 Mic amp (designed by Graham Blyth for the company’s 30th anniversary, and also used on the larger LX7ii and GB Series consoles) features high-resolution adjustment over a wide gain range of 55dB, and provides a stunning +22dB headroom through the console. True professional 48-volt phantom power caters for condenser microphones of all types.

A unique feature of the signal monitoring is the PEAK led. This uses multipoint signal take-offs to watch for overload in several parts of the channel strip, and the led lights more brightly as the signal approaches the peak point. For smooth and accurate channel control, the EPM12 has 60mm high-quality faders as used on other Soundcraft desks. The monitor output and headphone output work in parallel so that performers can still listen on phones while an engineer is listening on studio monitors.

• 12+2 Input Analogue PA Mixer
• 2 configurable auxiliary buses
• XLR-type and ¼” metal jack connector sockets
• RCA phono stereo playback inputs and record outputs
• 3-band EQ with a swept mid on mono inputs
• 2-band EQ on stereo inputs
• TRS insert sockets and inserts on all mono inputs and mix output
• Ten-segment LED output metering
• Intuitive and comprehensive solo system
• Headphone output
• Easily rack mountable

Type: Analog

Channels: 10 (8 x Mono, 2 x Stereo)

Faders: 12 x 60mm

Inputs – Mic Preamps: 8 x XLR (CH 1-8)

Phantom Power: 8

Inputs – Line: 8 x 1/4″ (CH 1-12), 4 x 1/4″ (Stereo 2 channel), 2 x RCA (stereo)

Outputs – Main: 2 x XLR

Outputs – Other: 2 x RCA (Rec), 2 x 1/4″ (Monitor)

EQ Bands: 3-band Sweepable Mid (CH 1-8), 2-band (Stereo 1-2)

Aux Sends: 2 x Aux (Pre/Post)

Send/Return I/O: 2 x 1/4″ (Aux), 4 x 1/4″ (Return)

Channel Inserts: Yes (CH 1-8), 2 x 1/4″ (Main Inserts)

Headphones: 1 x 1/4″

Dimesnions: 432 x 80.5 x 362 mm

Weight: 7.2 kg
