LD Systems XS700 PA Power Amplifier 700 Watts

The XS700 is the flagship of the XS series of power amplifiers and an absolute flyweight with just 1U and 3.4kg. Our Class D power amplifier technology makes it possible to pack high performance into a minimum of space without generating unnecessary loss energy. The power amp has an output of 350W per channel at 4 ohms, 2x 200W at 8 ohms, and 700W in bridged mode. It is conceived for all professional applications in which ease of transport and space is essential, whether mobile or in permanent installations.

The XS700 has all protection circuits against short-circuiting, DC, overheating, and overloading and has a soft-start delay.

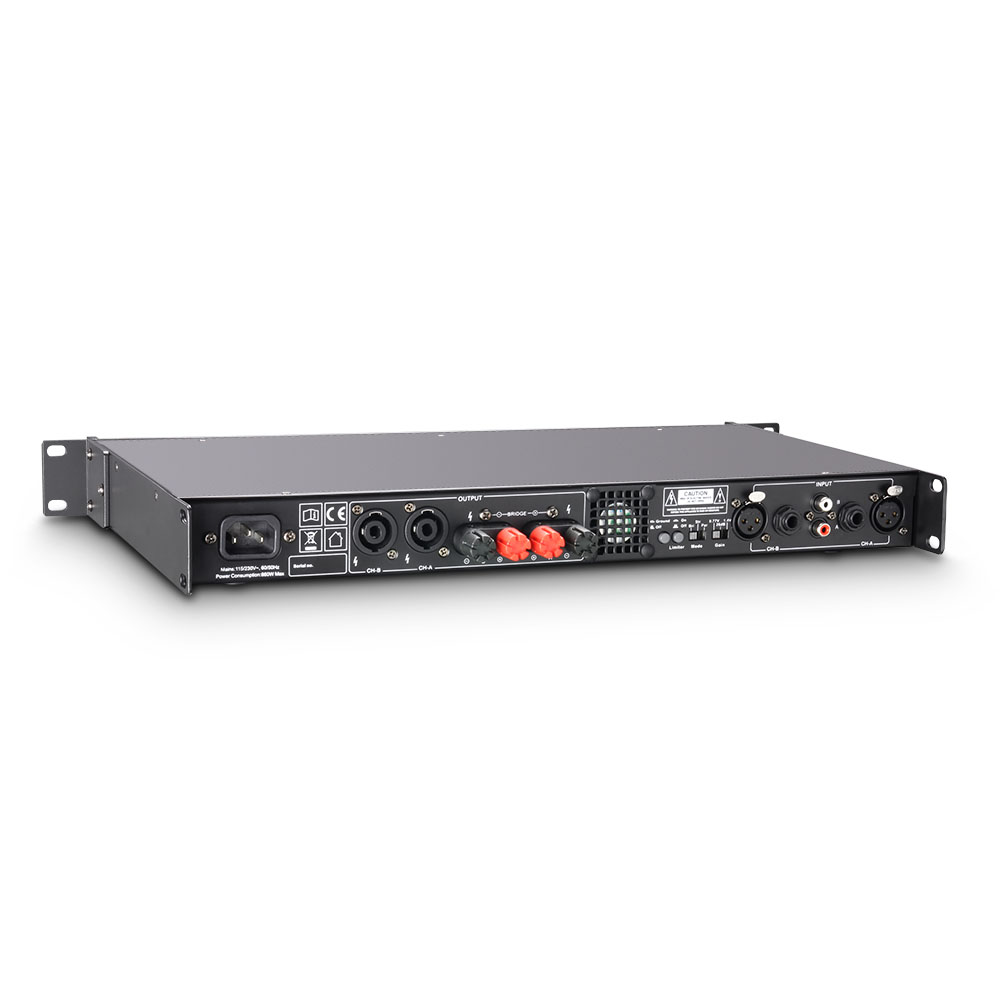

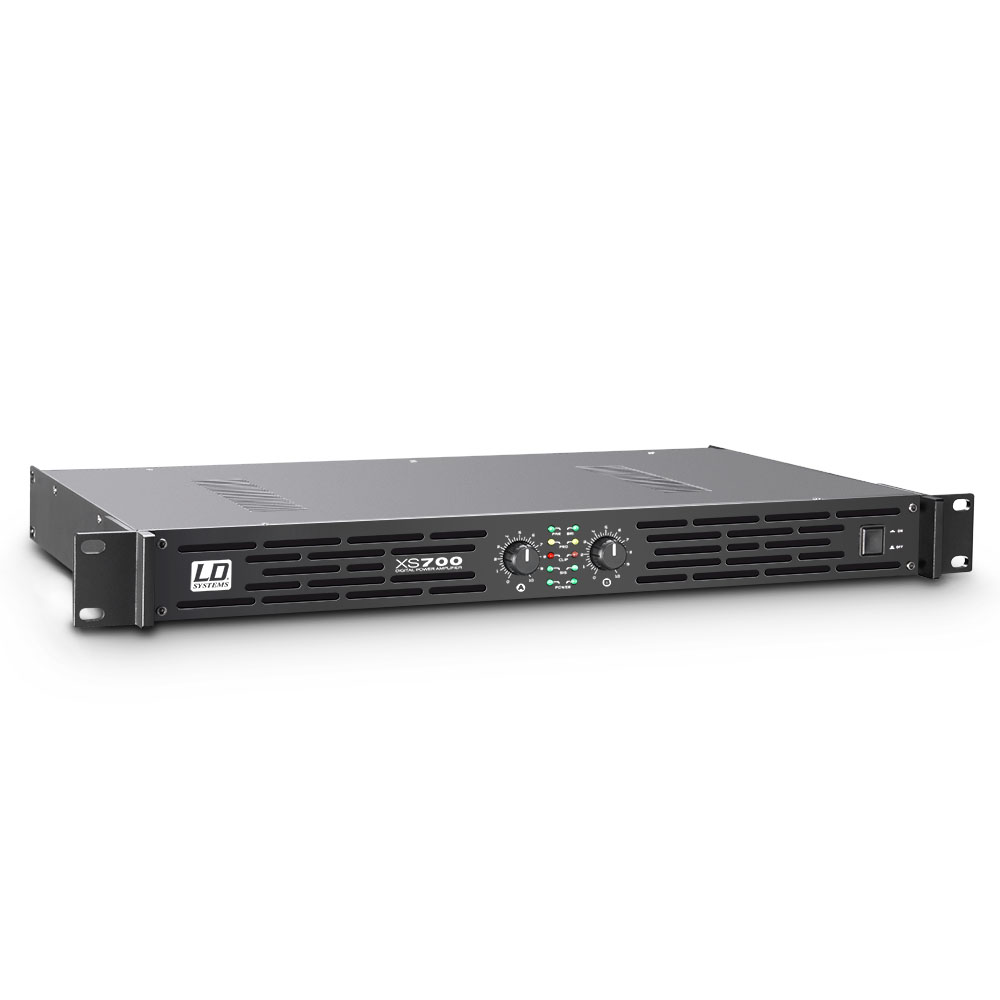

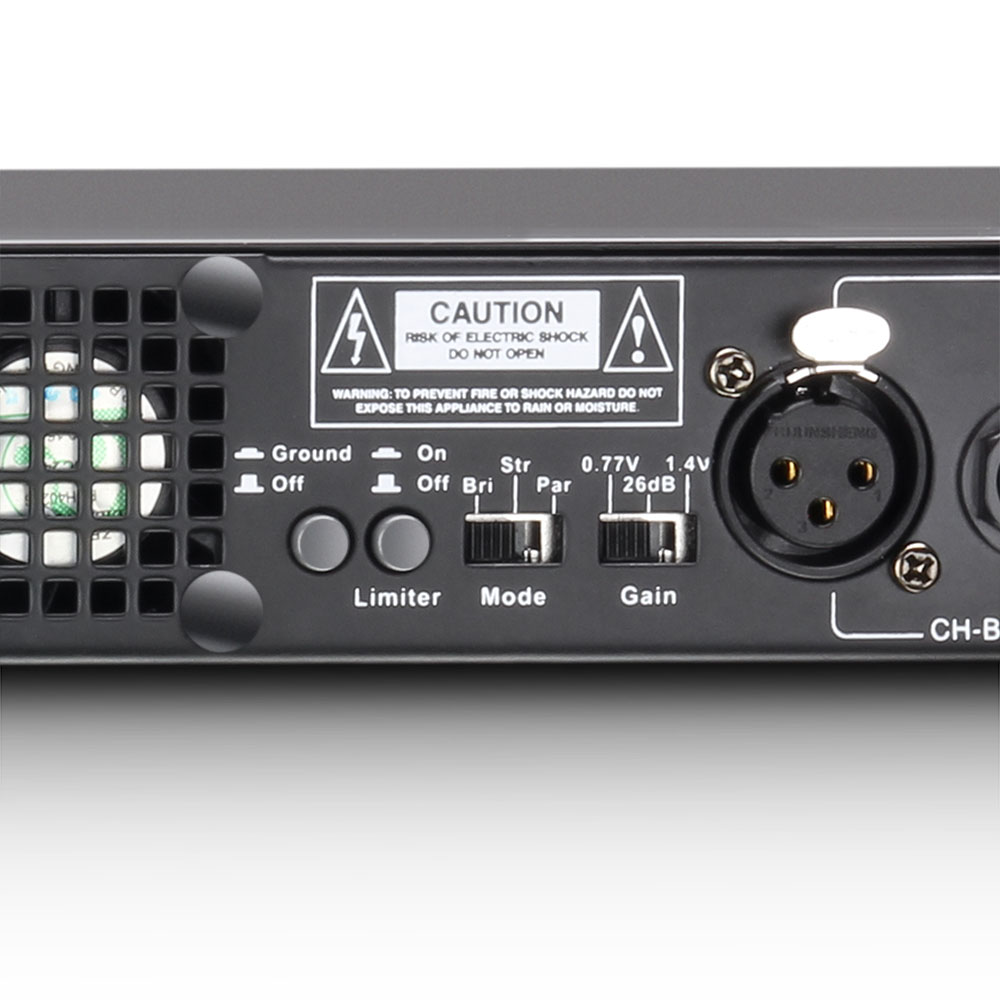

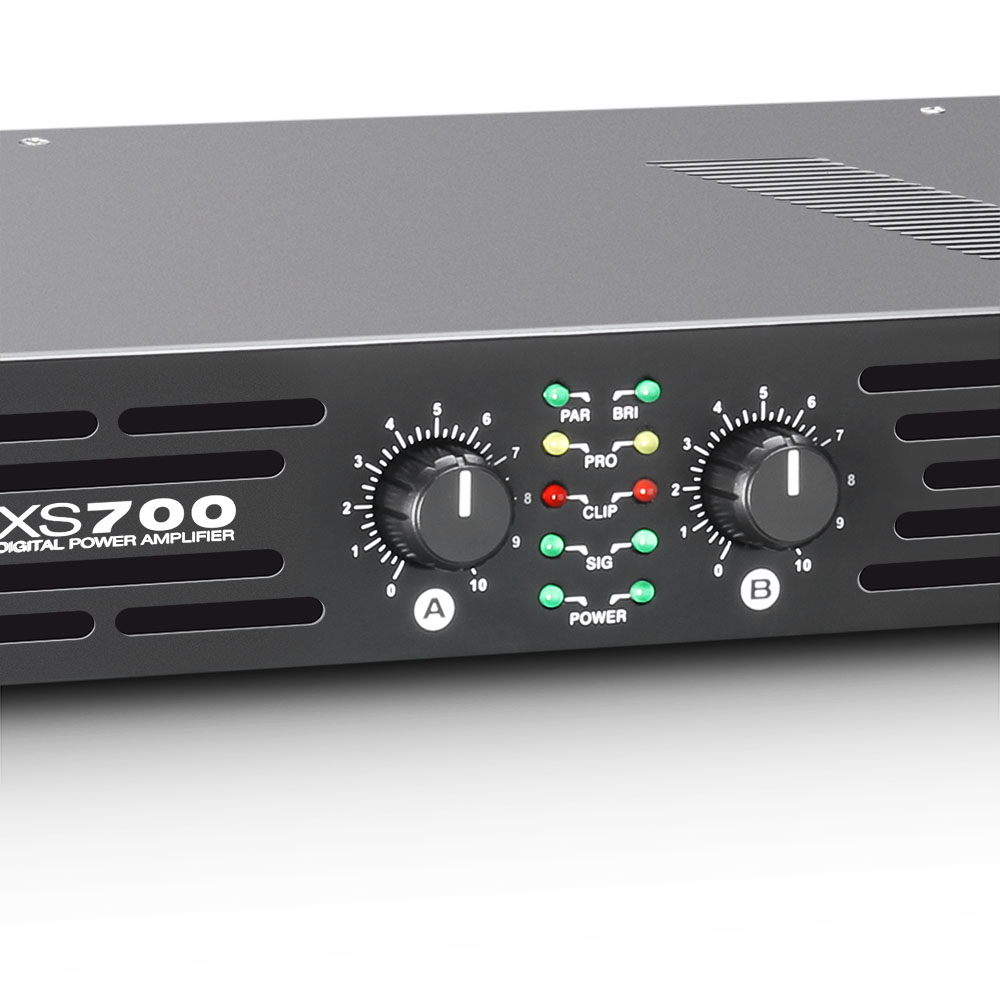

The amplifier features XLR, RCA and jack input connectors, with Speakon-compatible sockets and screw terminals as outputs. On the rear panel, it is possible to select the mode of operation and gain and activate the limiter and ground-lift function. LEDs on the front indicate power, signal, clipping, triggering of the protection circuit, and the mode of operation. The XS700 impresses with operational dependability and a transmission range of 20Hz – 20kHz, which is reproduced transparently and dynamically with high impulse fidelity.

Key Features:

• Highly efficient Class-D amplifier
• 2x 350W Output
• Compact 1RU design
• Switchable limiter and ground lift functions
• Speakon and speaker terminal outputs
• Full range frequency response
• Built-in protection circuits for added safety
• Designed and engineered in Germany


  Technical Data

  roduct number:	LDXS700
  Product type:	Power Amplifiers
  Type:	PA Power Amplifiers
  Rated ouput power (1kHz):	2 x 350W (4Ω) 2 x 200W (8Ω) 700W (Bridged, 8Ω)
  Output circuitry:	Class D
  Frequency response:	20 – 20000Hz
  THD:	< 0.1 %
  Gain:	36 dB / 27 dB / 31 dBdB
  Input sensitivity:	0.6 V / 1.7 V / 1.1 VV
  Protection circuits:	DC, soft start, over-current, thermal overload, short circuit
  Controls:	volume, Gain, On / Off, ground lift, limiter, mode
  Indicators:	Power, mode, signal, clip, protect (protection circuit engaged)
  Line inputs:	2
  Line input connectors:	RCA, 6.3 mm Jack
  Loudspeaker outputs:	2
  Speaker output connections:	Speakon compatible, Terminal posts
  Cooling:	low-noise fan
  Operating voltage:	Switching Power Supply, 115 V AC / 230 V AC (switchable)
  Power consumption @ full load:	860W
  Dimensions:	482 x 44 x 244mm
  Weight:	4kg
