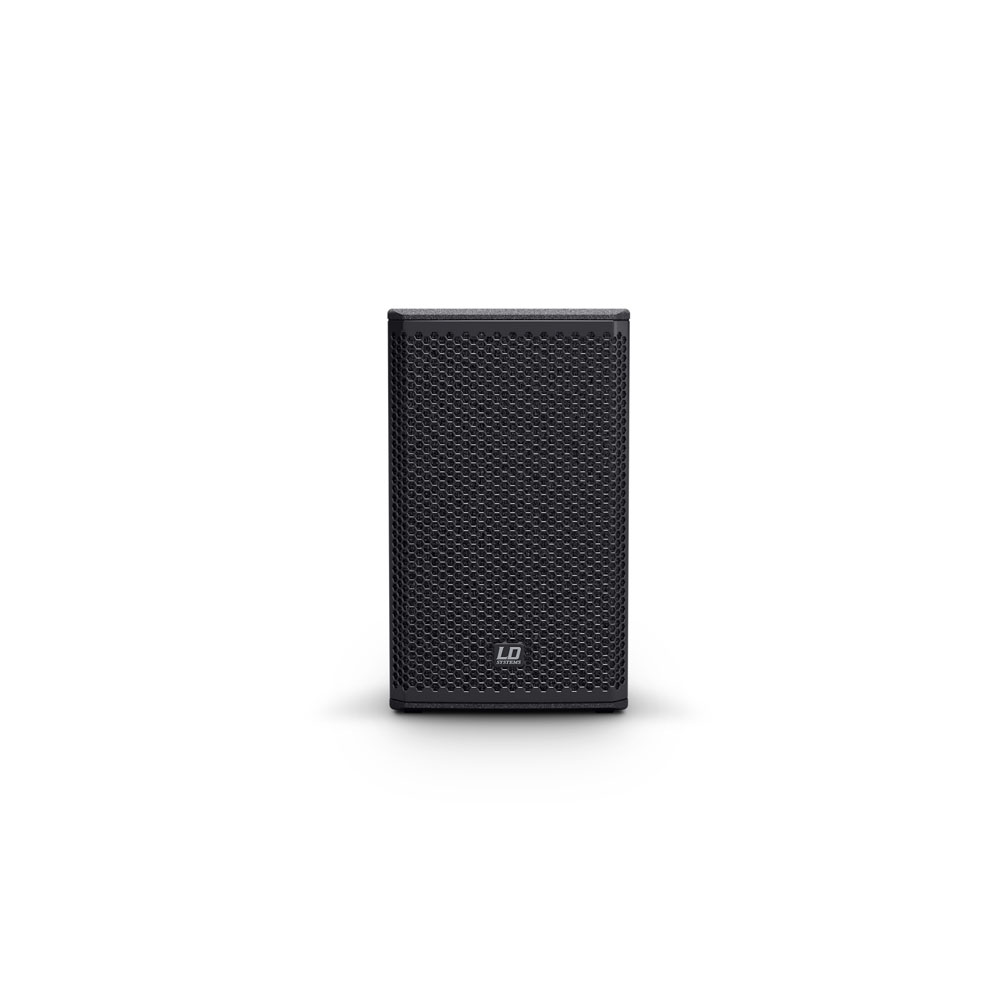

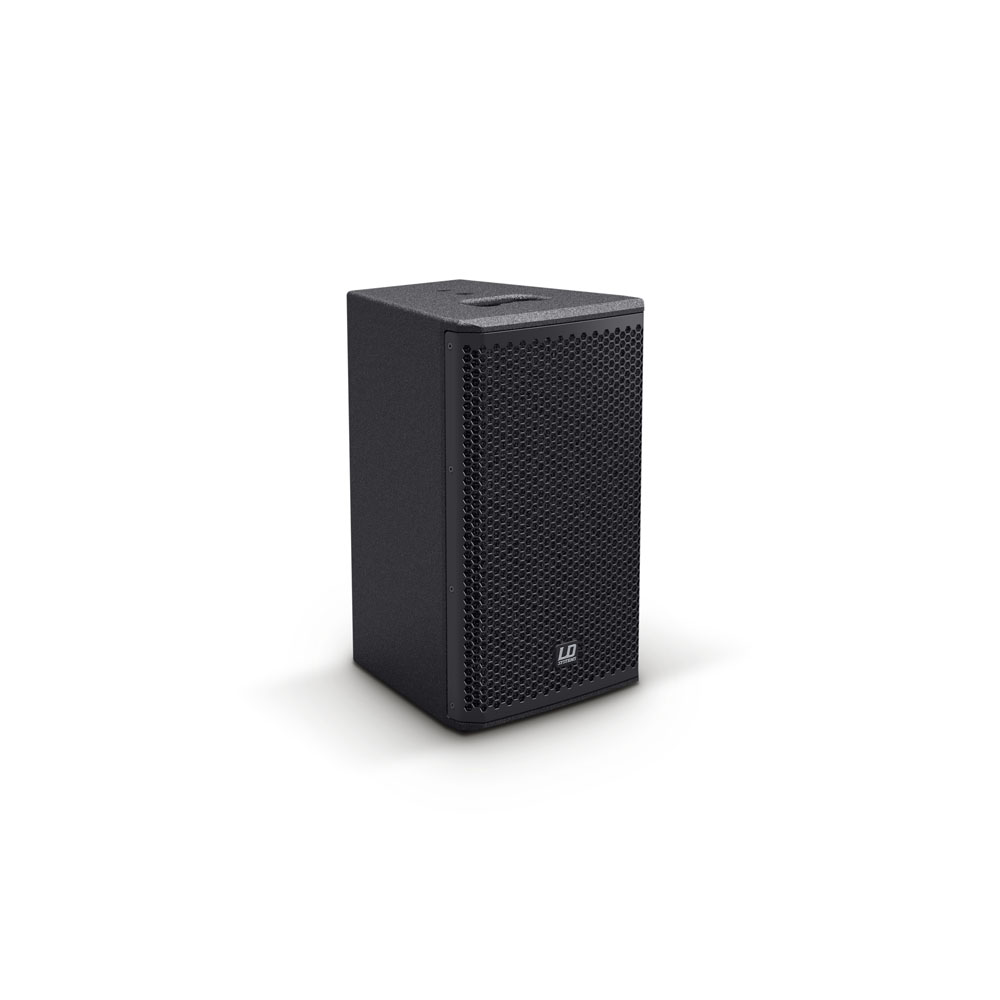

LD Systems Stinger 8 A G3 8″ Powered Speaker 600 Watts
SKU: Stinger 8 A G3 8"
$999.00
Engineered for rock-solid reliability day in, day out the Stinger 8A G3 powered 2-way system is a truly professional performer. With its multi-purpose bass reflex construction and carefully contoured, user-friendly presets it is equally suitable for full-range, satellite or floor monitor applications. The Stinger® 8 A G3 is powered by high efficiency Class D amplification with a hefty 300 watts RMS output. It drives a custom designed 8” woofer and BMS compression driver delivering a punchy low end and smooth, crisp highs. The HF waveguide has been designed using BEM, the numerical modeling of sound radiation and propagation. It reduces floor and ceiling reflections, effectively eliminates side lobes and achieves a controlled uniform coverage pattern. The Stinger® 8 A G3 incorporates LD Systems’ proprietary DynX® DSP technology to ensure top-level performance with maximum clarity and punch at all times. Processing includes crossover and multiband limiter functions for accurate time alignment and pristine, distortion-free audio. Designed to be a real workhorse throughout, the enclosure is made of rigid birch ply and coated with ultra tough polyurea for extraordinary strength and durability. Sporting a steel front grille, Dual-Tilt pole receptacle, multiple suspension points and ergonomic handles the Stinger® 8 A G3 is an attractively priced choice for truly professional sound reinforcement. A large selection of accessories facilitate live and installed applications.
SPECIFICATIONS
- High performance 8″ powered speaker
- Full range 2-way design
- Onboard 300W (RMS) Class-D amplifier
- On button mode selection to suit various applications
- Strong wooden enclosure with Polyurea coating
- Integrated multi-band limiter

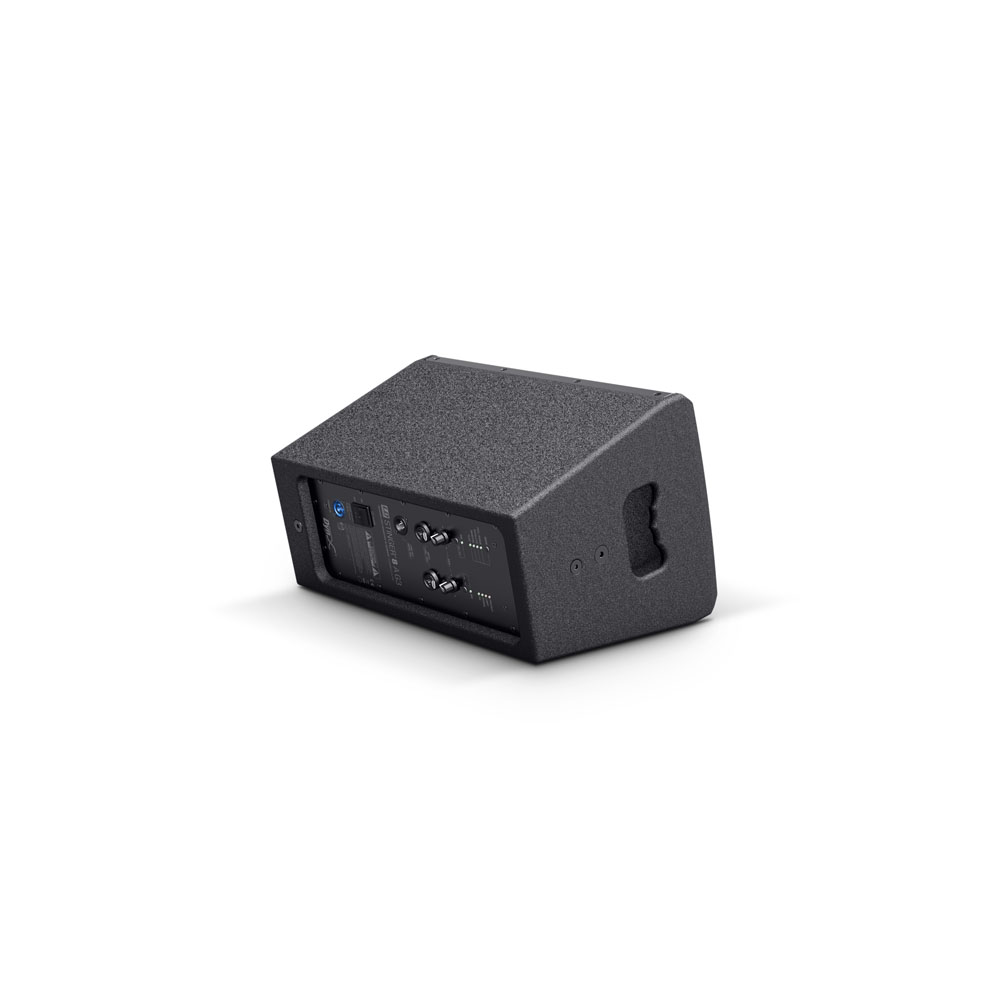

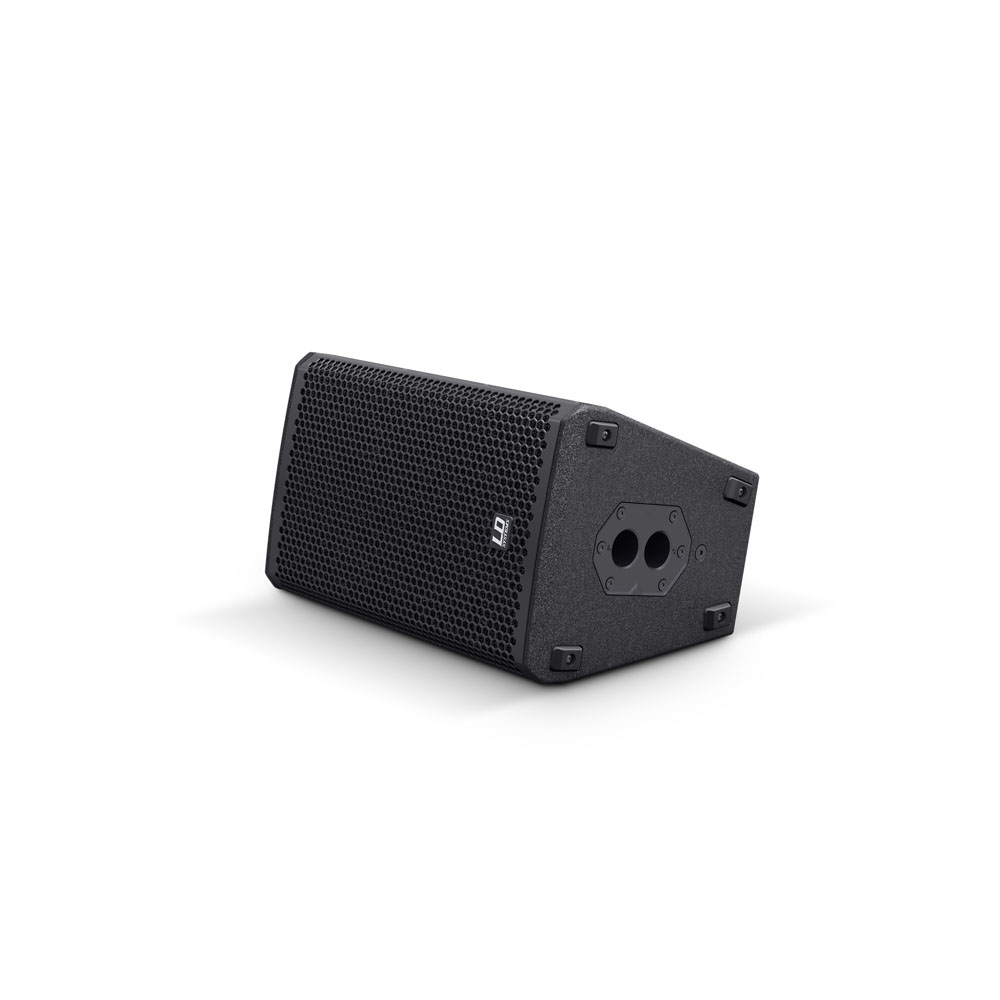

- Great for FOH or foldback applications
- Designed and engineered in Germany
TECHNICAL INFORMATION
Product number: | LDEB82AG3 |
---|---|
Product type: | PA loudspeaker |
Type: | active |
Low/mid driver dimensions: | 8″ |
Low/mid driver dimensions (mm): | 203.2mm |
Woofer magnet: | Ferrite |
Woofer brand: | Custom-made |
Woofer voice coil: | 2″ |
Woofer voice coil (mm): | 50.8mm |
Horn: | BEM optimized CD Horn |
HF driver dimensions: | 1″ |
HF driver dimensions (mm): | 25.4mm |
HF driver magnet: | Ferrite |
HF driver brand: | BMS |
HF driver voice coil: | 1″ |
HF driver voice coil (mm): | 25.4mm |
Amplifier: | Class D |
Dispersion (H x V): | 90 x 50° |
RMS: | 300W |
Peak power: | 600W |
Frequency response: | 70 – 20000Hz |
Max. SPL (peak): | 125dB |
Protection circuits: | over voltage, Multiband limiter, thermal overload, over-current |
Input sensitivity: | -9dBu |

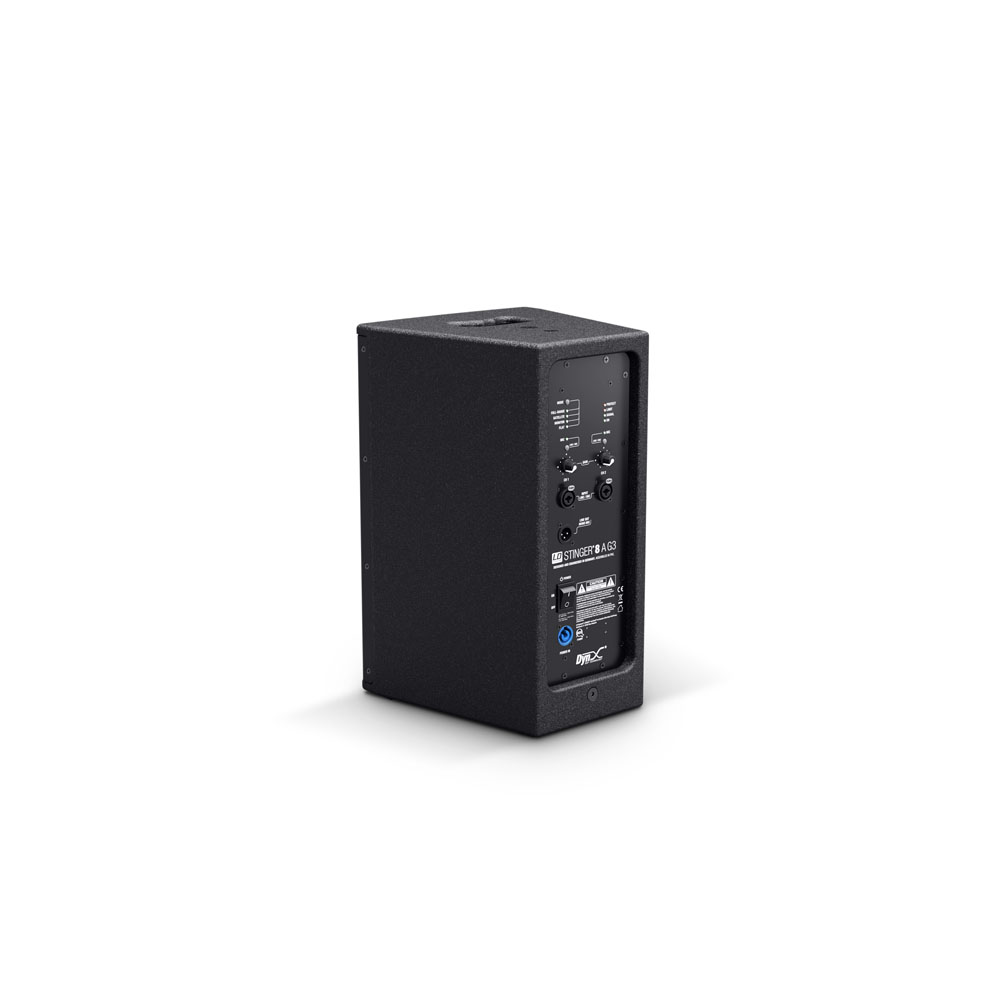

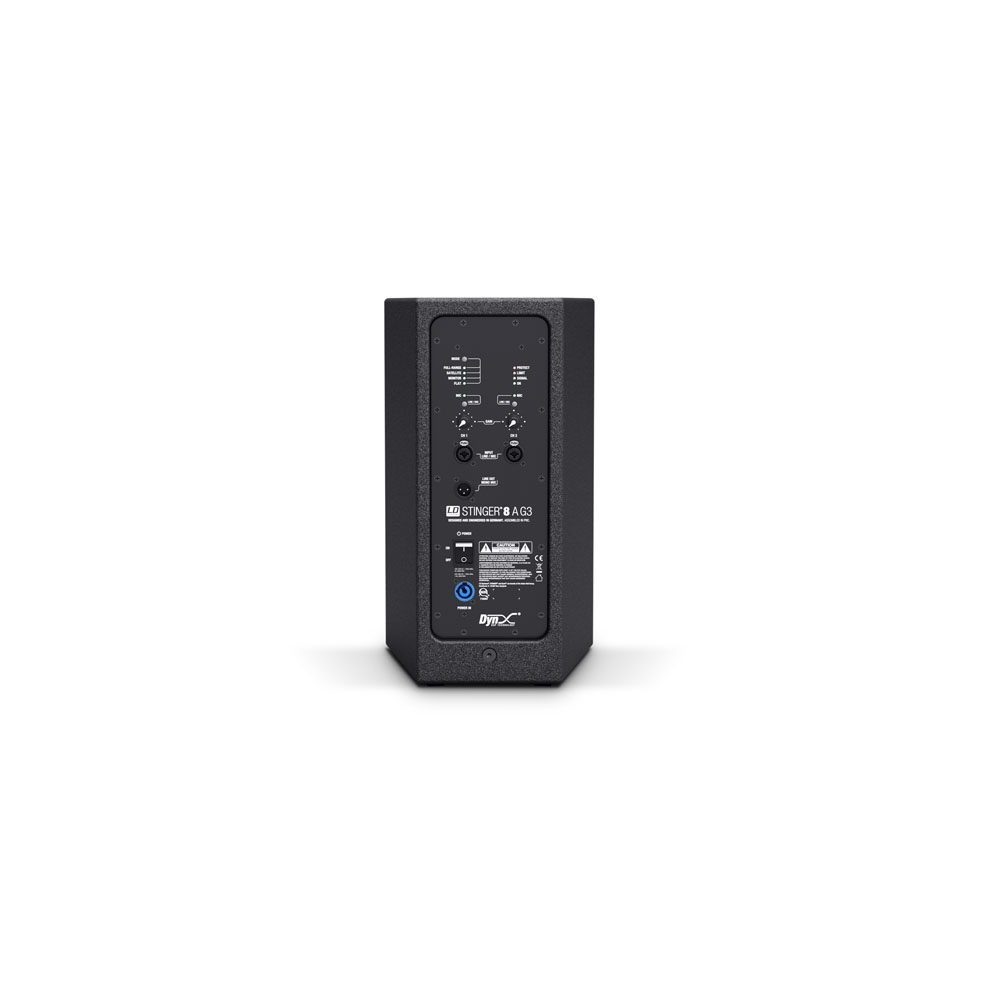

Controls: | 2 x gain, 2 x Mic/Line, mode |
Indicators: | mode, protect (protection circuit engaged), signal, Mic, on, limit |
Inputs: | 2x XLR / Jack combo |
Outputs: | 1x XLR |
Operating voltage: | 100 – 120 V / 50 – 60 Hz or 200 – 240 V / 50 – 60 Hz (automatic switching), Switching Power Supply |
Operating Temperature: | 0 – 40°C |
Relative humidity: | < 80% (non-condensing) |
Cabinet material: | 12 mm Plywood |
Cabinet surface: | Polyurea |
Cabinet construction: | vented |
Dimensions: | 270 x 457 x 290mm |
Weight: | 10.8kg |
