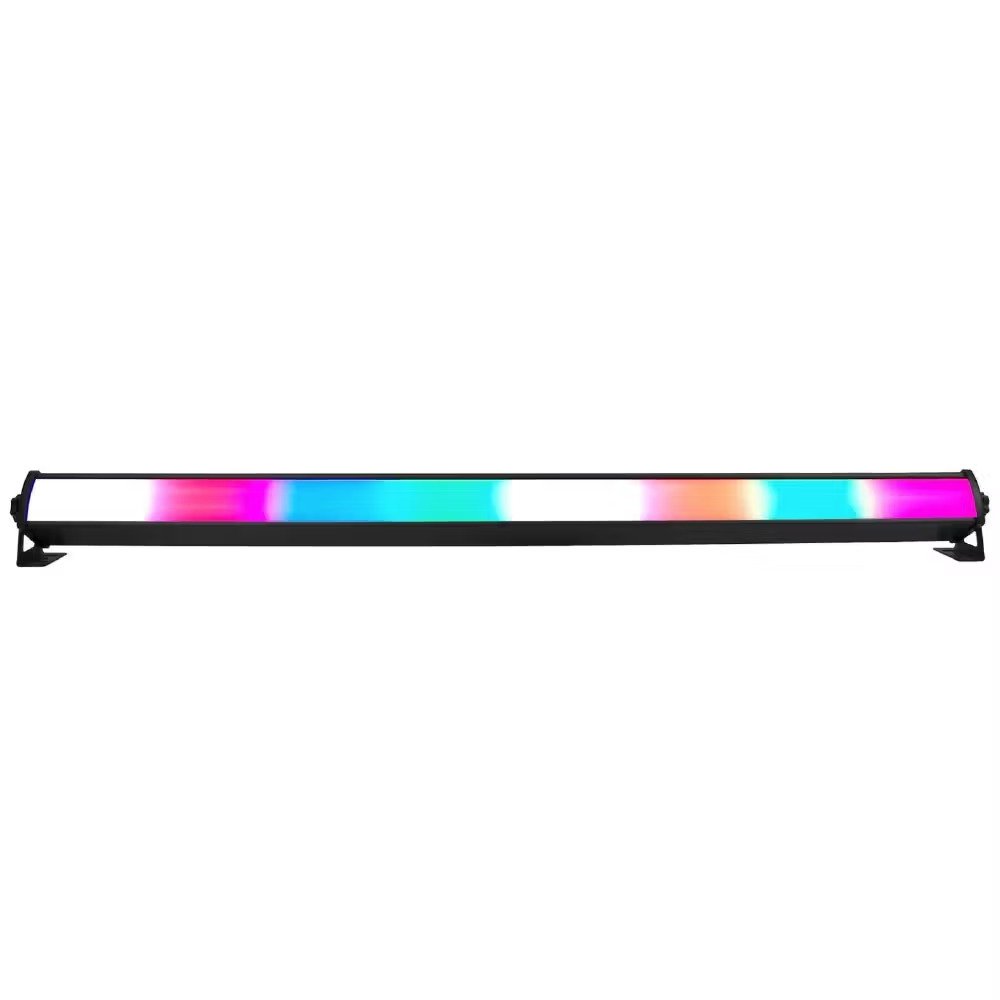

224 RGB LED Bar with 16 Segment Control
The BAR224FXL uses 224 x SMD RGB 3-in-1 LEDs to produce a powerful party effect. With onboard modes and DMX control, you can utilise the 16-segment control to create visual effects.
- Light Source: 224 x SMD 5050 RGB LEDs
- Beam Angle: 90°
- PWM: 10,000 Hz
- Operation Modes: DMX, auto, manual, sound active, master/slave
- Control Interface: 3-pin XLR in/out
- DMX Channels: 3 / 5 / 8 / 24 / 48 / 53
- Input Voltage: 110-240V AC, 50/60 Hz
- Power Consumption: 150W
- Dimensions: 1100 x 60 x 60mm
- Weight: 3.5 kg
Optional Accessories (sold separately):
- XSTANDM8 (for vertical mounting)
-
PIXEL BARSBAR224FXLBAR224FXL224 X SMD 5050 RGB LED FX BAR
-
PhotometricsBAR224FXL
-
Light Source:224 x SMD 5050 RGB LEDs
-
Beam Angle:90°
-
Output:
-
PWM:10,000 Hz
-
Led lifespan:50,000 hours
-
Effects
-
Dimming:0-100%
-
Strobe:1~30 Hz
-
Power
-
Power consumption:96W
-
Input Voltage:100~240 V AC, 50/60 Hz
-
Connection:IEC in/out
- Control
- Control Protocol:
- DMX512DMX Channels:3 / 5 / 8 / 24 / 48 / 53
- Interface:3-pin XLR in/out
- Operational Modes:DMX, manual, auto, sound active, master/slave

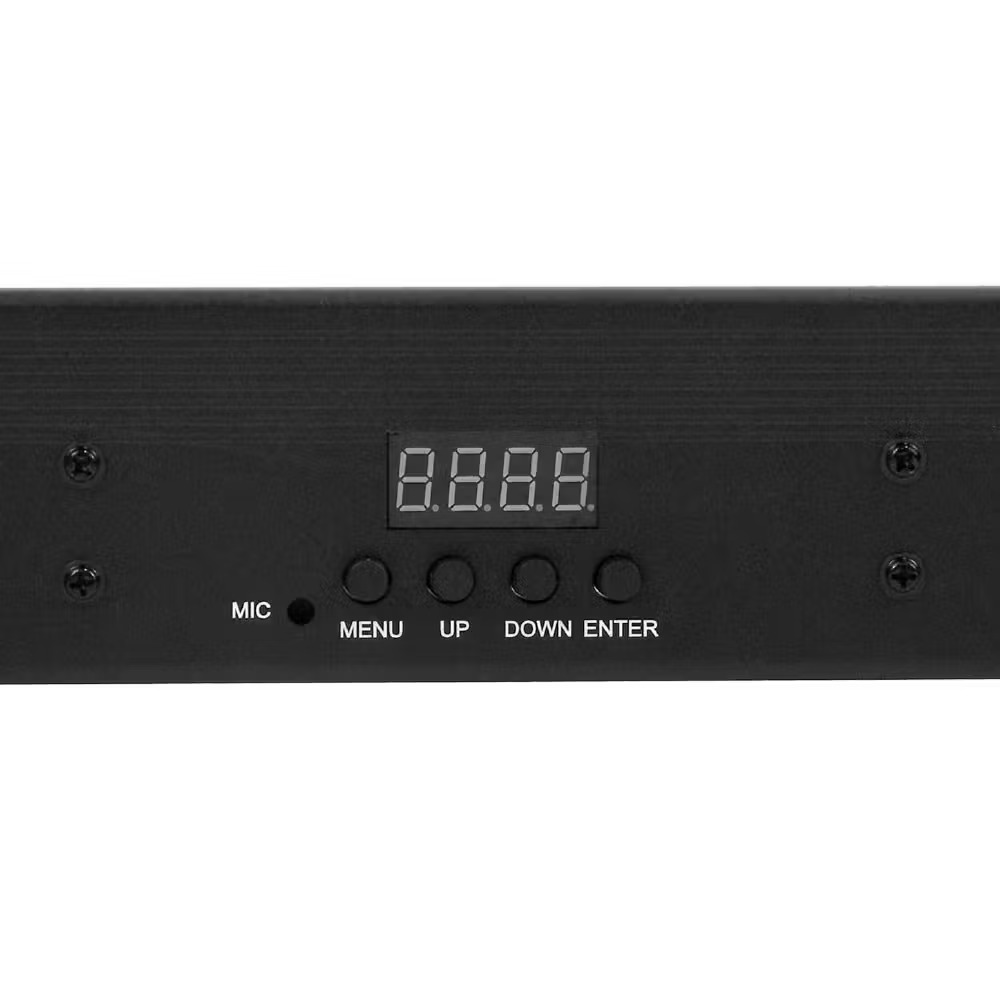

- Display4-button LED control panel
- Housing
- Materials:Aluminium, matte black finish
- Dimensions:1100 x 65 x 65 mm
- IP rating:IP20
- Net Weight:3.5 kg
