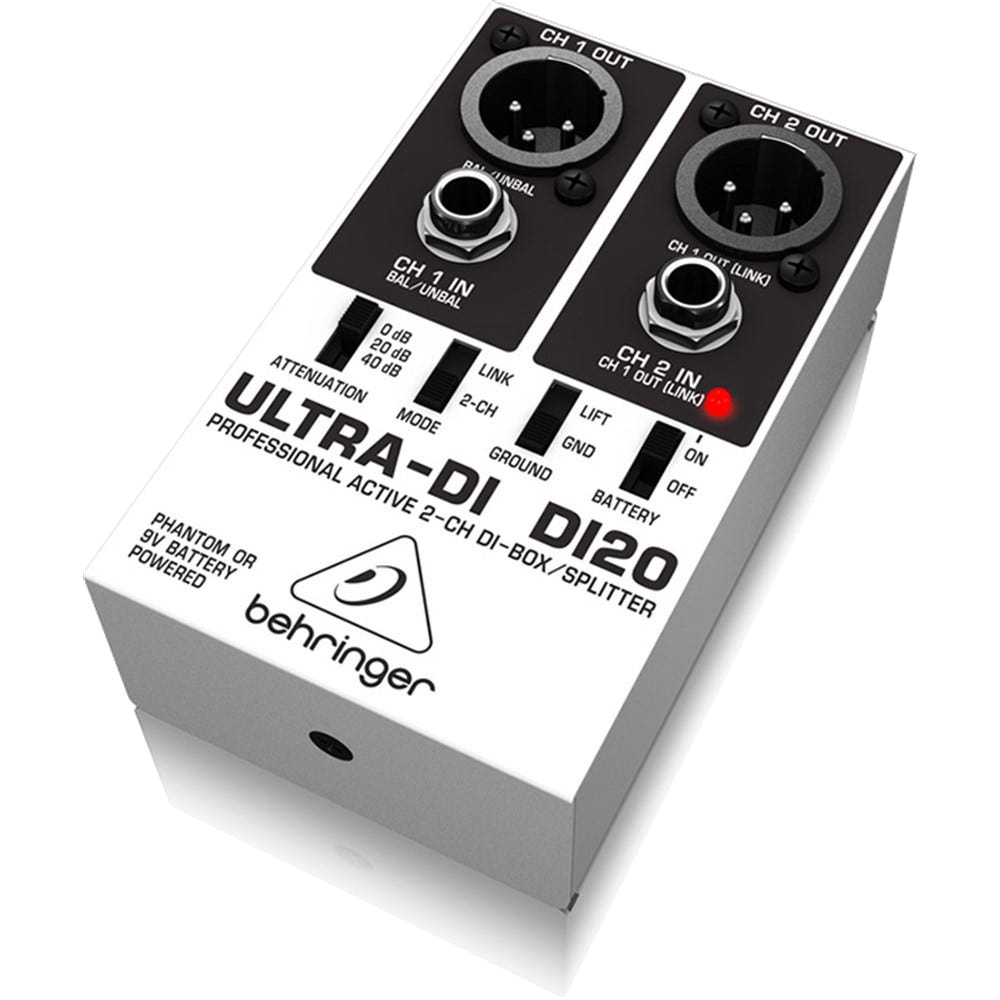

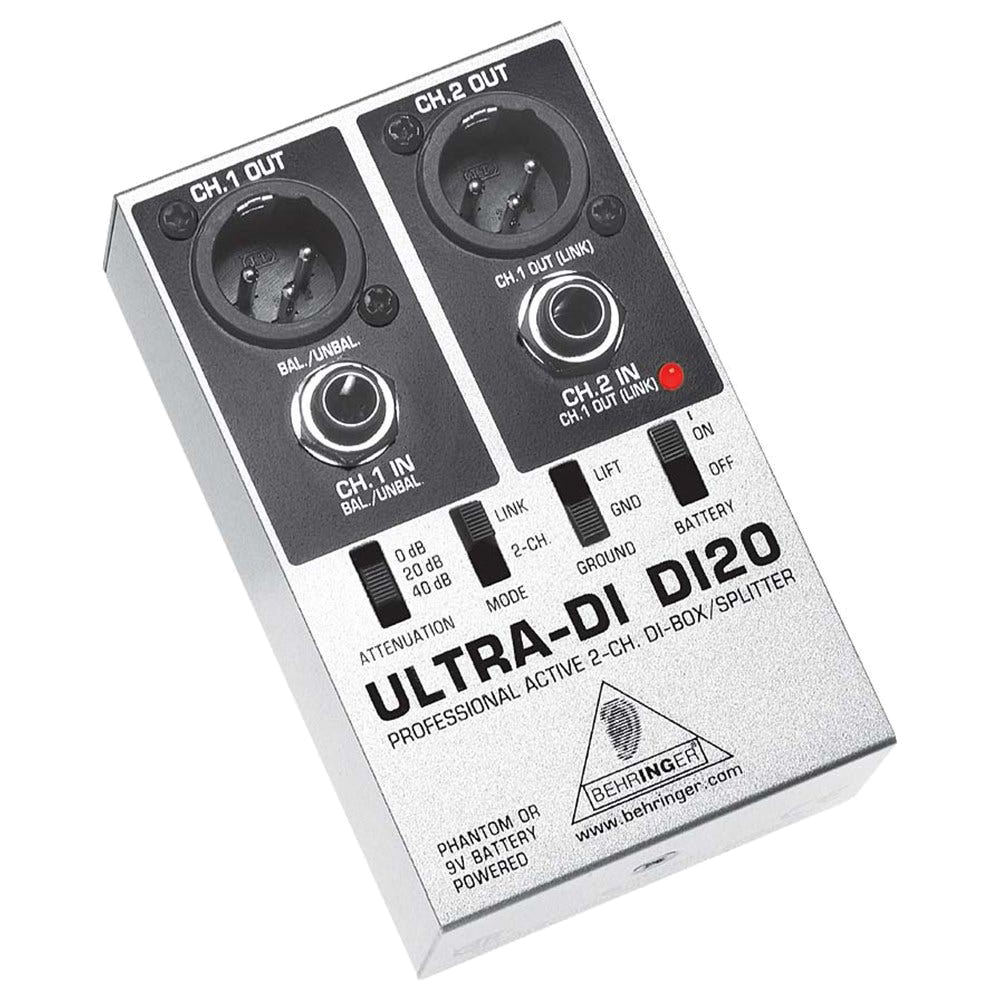

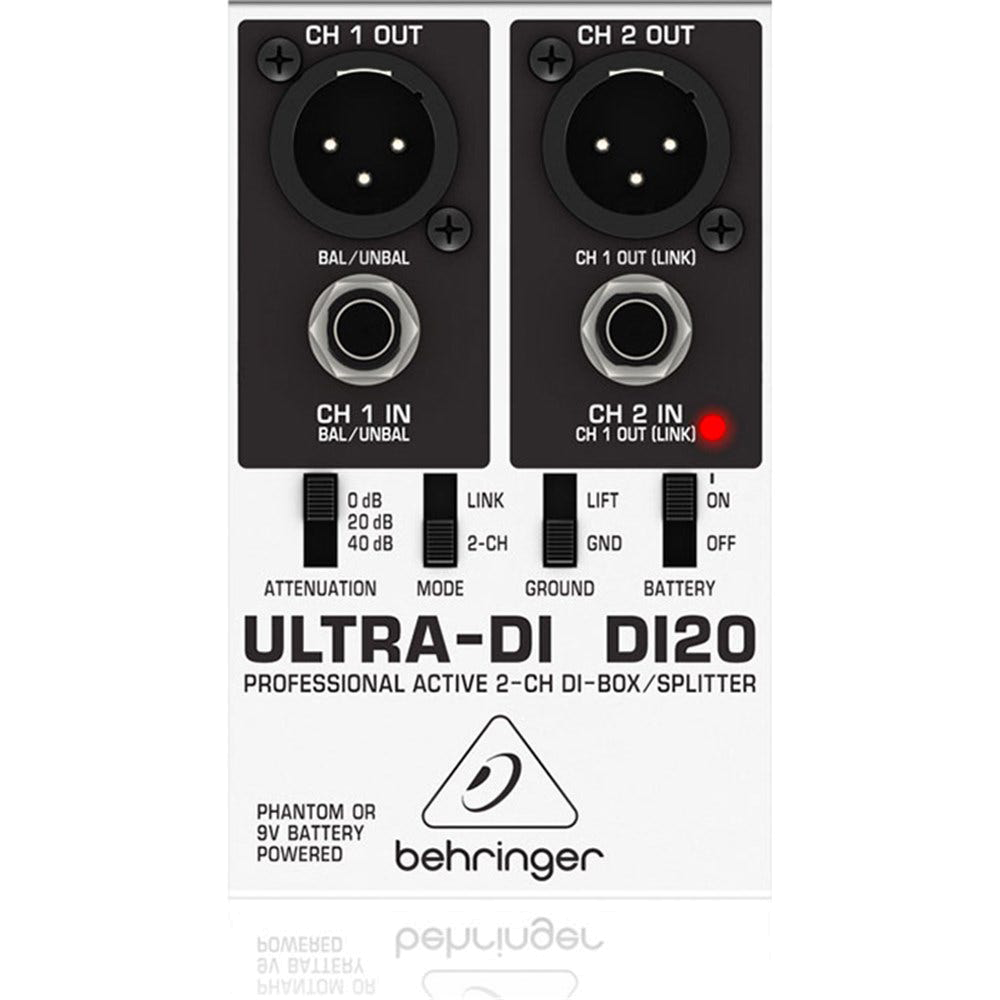

Behringer Ultra DI20 Active 2 Channel DI Box

Convert up to two separate unbalanced 1/4-inch TRS lines into two balanced XLR output with this Behringer Ultra-DI DI20 direct injection box. This DI box also functions as a signal splitter, allowing you to launch two separate mono signals, a stereo signal or a split-signal feeding two separate amps with just the flip of a switch.

Connect to up to 3,000-watt amplifier outputs thanks to this DI box’s built-in input attenuator. When you use this three-position attenuator in conjunction with the ground lift switch, it also supports up to +48dBu input levels for incredible control and connectivity. These features, along with servo-balanced operation that delivers ultra-flat frequency response, makes this audio essential ideal for both studio and stage use.

This Behringer Ultra-DI box offers long-term durability and utility with its tough metal casing and high-quality components. You can power this device economically with just a 9-volt battery, or take advantage of its +18- to +48-volt DC power supply by connecting the box to your mixer. This internal battery shuts down automatically when supplied with phantom power, preserving its longevity.

Features

• Professional multipurpose direct injection box for stage and studio applications
• Provides impedance and signal matching for the direct instrument connection to mixers and amplifiers
• Converts 2 independent unbalanced 1/4″ TRS line inputs into 2 balanced XLR outputs
• Additional Split mode (channel 1 assigns signal to both XLR outputs)
• Ultra-flat frequency response due to servo-balanced operation
• Internal battery automatically shuts off when phantom power is applied
• Allows direct connection to speaker outputs with up to 3,000 Watts
• Ground Lift switch eliminates typical ground loop problems
• Input 2 usable as channel 1 Link output (additional to XLR output)
• Has 1/4″ TRS and gold-plated XLR connectors
• Ultra-rugged road-suitable metal case
• High-quality components and exceptionally rugged construction ensure long life
• Includes a 3-year warranty
