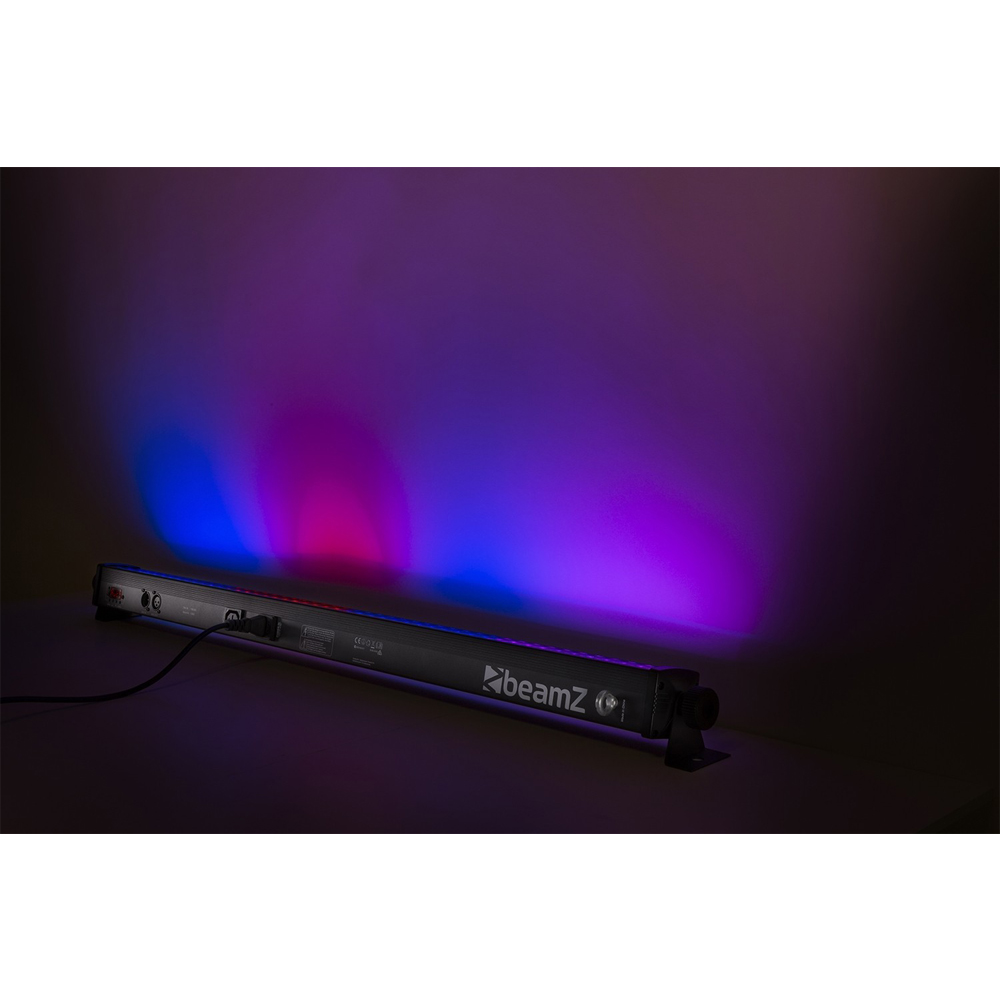

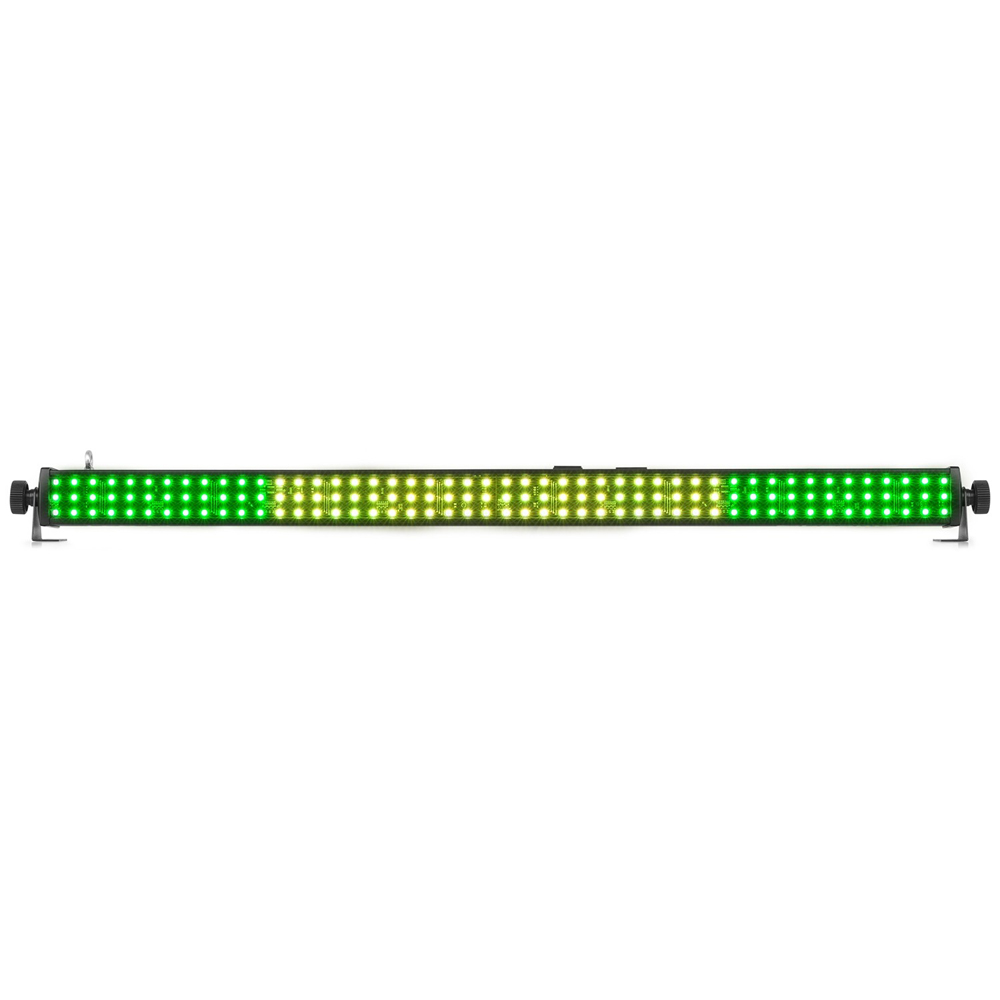

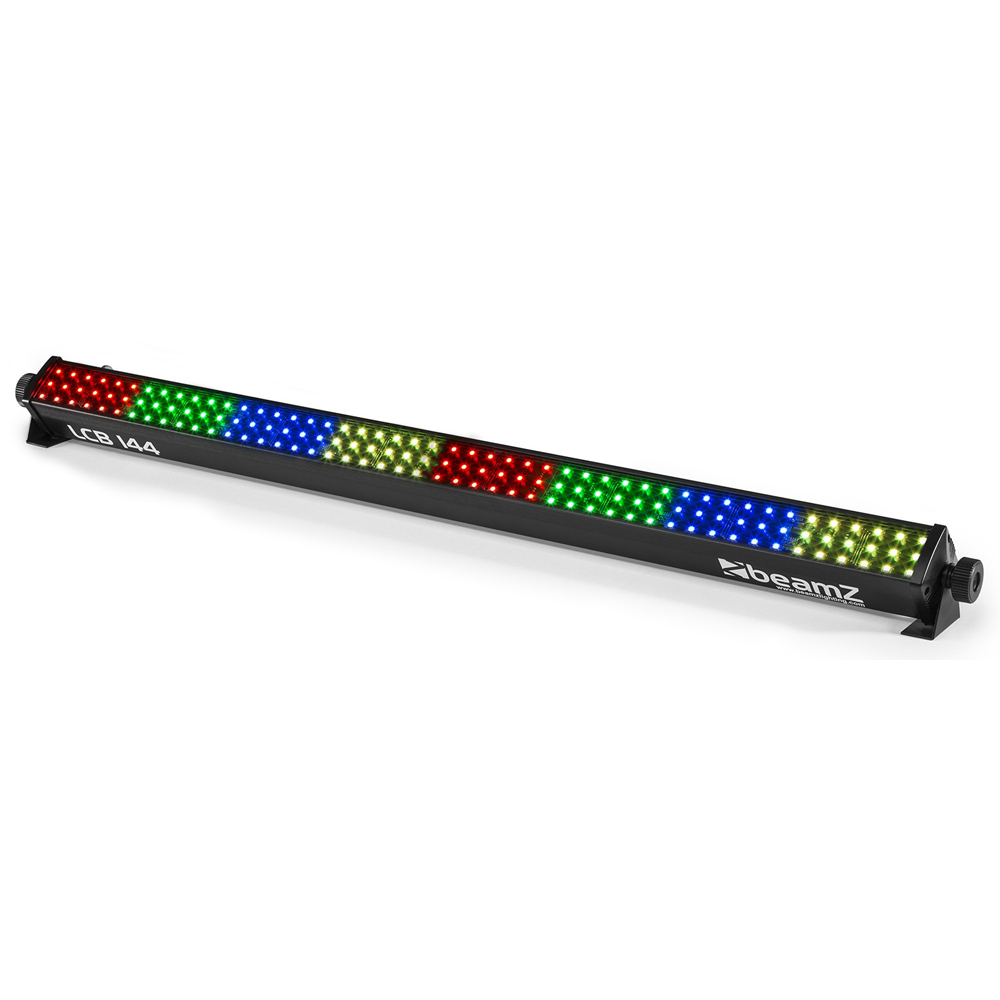

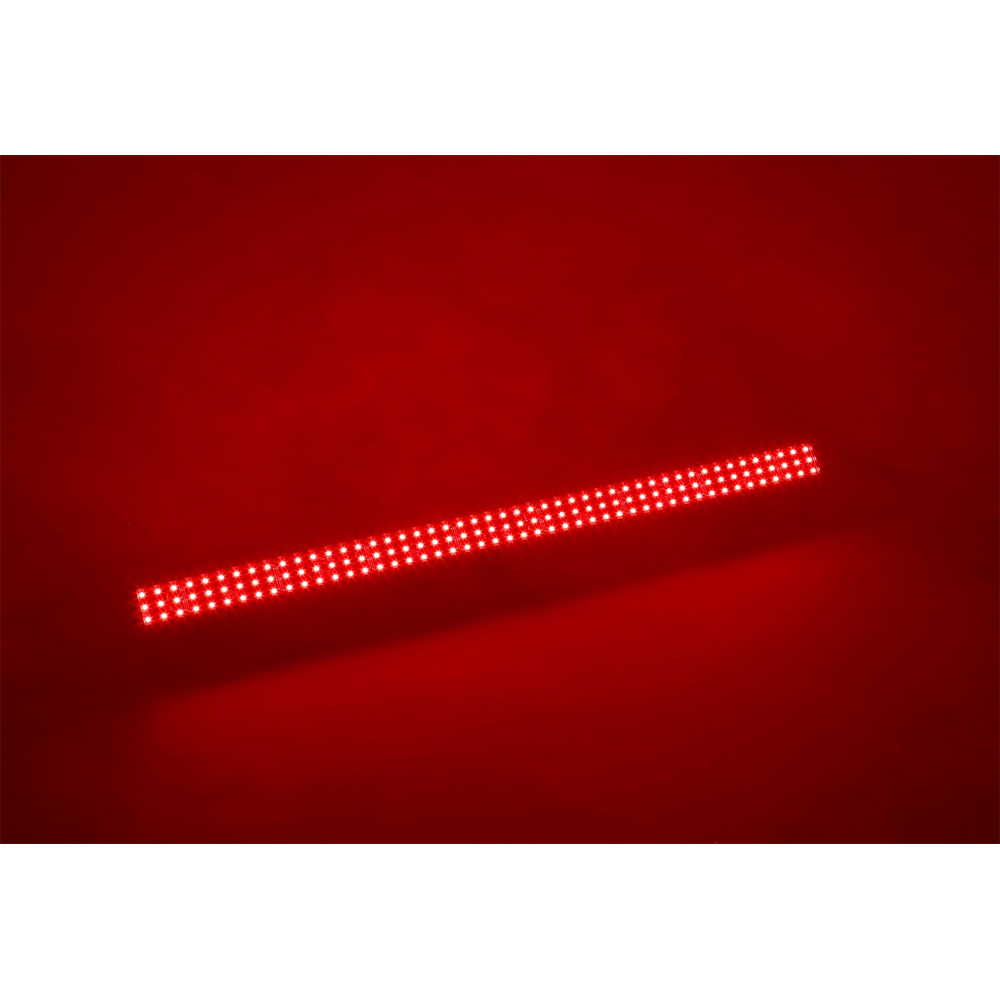

The Beamz LCB144 is a LED bar with 144 pieces SMD RGB LEDs. The LEDs are divided in 8 separately controllable sections. With each section having its own RGB colour setting in DMX mode. While using the fixture in stand-alone mode there are 3 pre-programmed shows that you can run automatically or sound activated, pick from the 16 pre-programmed automatic programs or create your own mixture of colours in RGB mode. The extra IEC output enables you to simply link the power of multiple units together into a single socket.
SPECIFICATIONS
- 144x SMD RGB LEDs
- 3, 5, 6, 12, 24 or 48 DMX channels
- 8 Sections controllable
- DMX and Stand-alone mode
- Master/slave function
- Sound activated with adjustable sensitivity
- Auto mode with adjustable speed

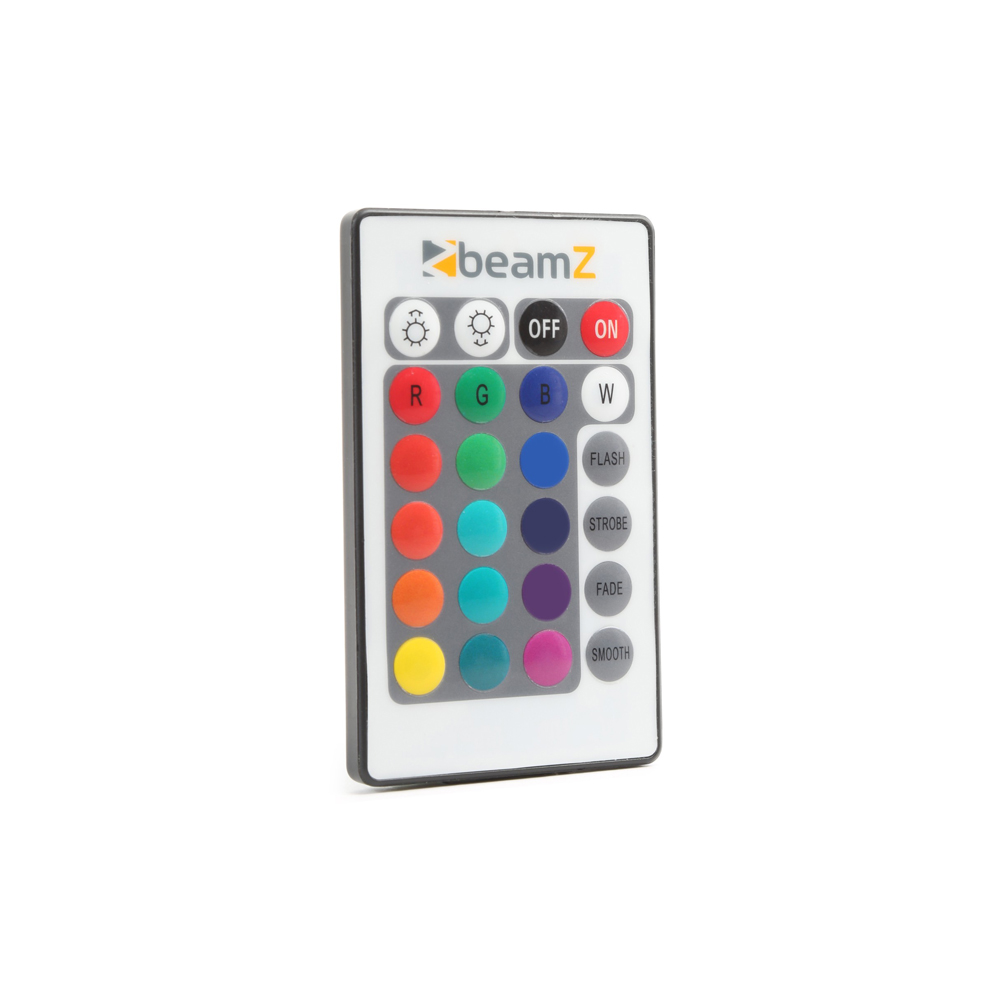

- IR remote control
- DMX in/output via 3-pin XLR
- IEC-connector input/output
- Control panel with LED display
TECHNICAL INFORMATION
No. of colours |
3 |
Colours |
Red, Green, Blue |
No. of LEDs |
144 |
Flash rate per second |
1 – 20Hz |
DMX channels |
3, 5, 6, 12, 24 or 48 |
DMX connection |
3-pin XLR |
Connector |
IEC |
Power supply |
100~240Vac / 60-50Hz |
Consumption |
25W |
Display |
LED |
Dimensions |
1025 x 70 x 65mm |
Weight |
1.55 kg |
