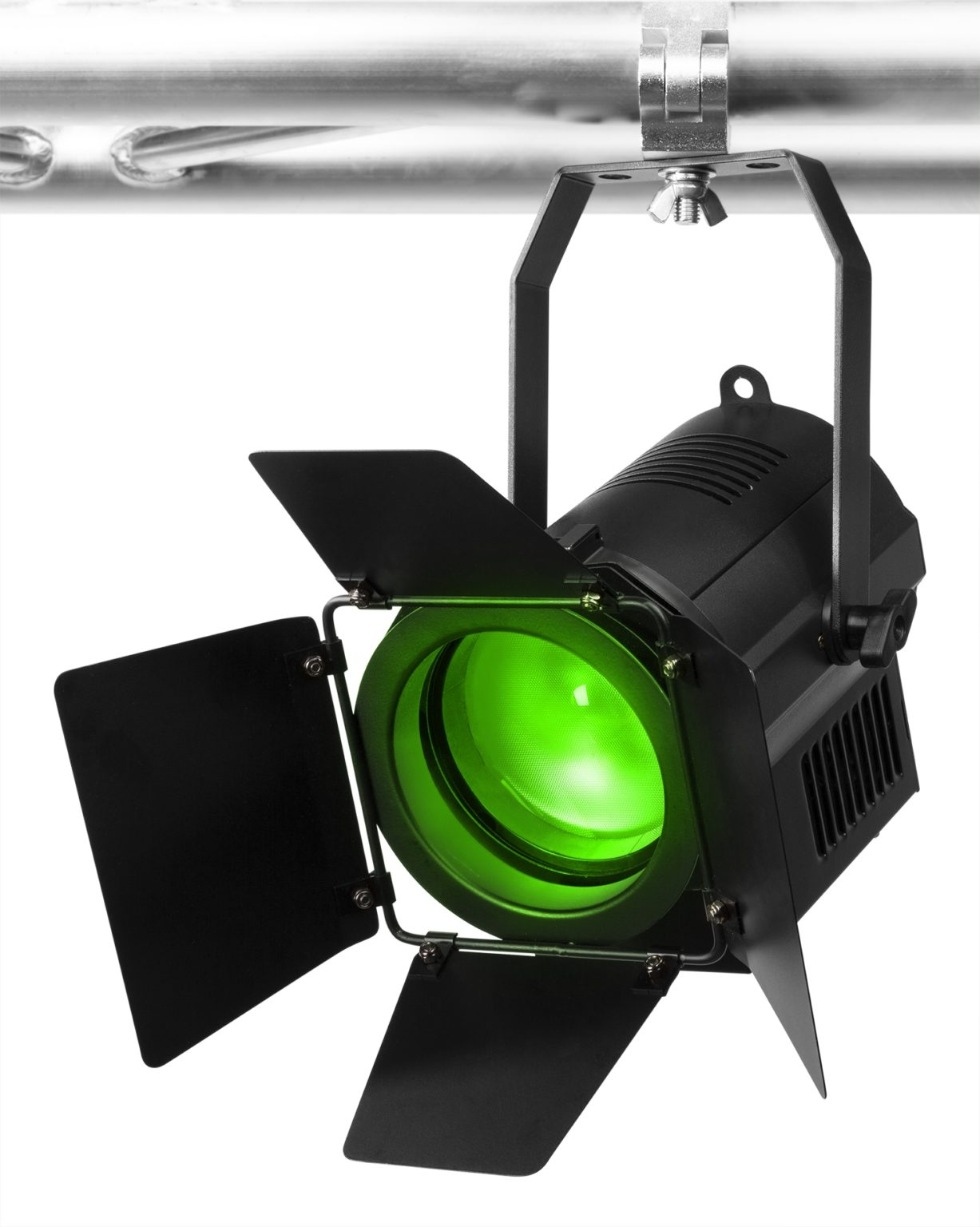

The BeamZ BTF440Z is a compact mini LED Fresnel specially designed for short distance coloured wash applications. The fixture is equipped with a tuneable 4x 40W RGBW COB LED. Featuring a 25-80 degree manual zoom function, high quality optics and the use of a compact aluminium housing this mini Fresnel is ideal for theatres, schools, exhibitions and display lighting.
- 40W Red, 40W Green, 40W Blue, 40W White COB LED
- Colour Temperature: 3000K – 8000K
- Lifetime LED: 50.000 hours
- Replaces 300-500W Halogen Lamps
- 25° to 80° Manual zoom
- Compact and lightweight Aluminium body
- HQ optical system
- CRI ≥90 (Colour Rendering Index)
- 16 bit dimming via DMX
- Flicker free

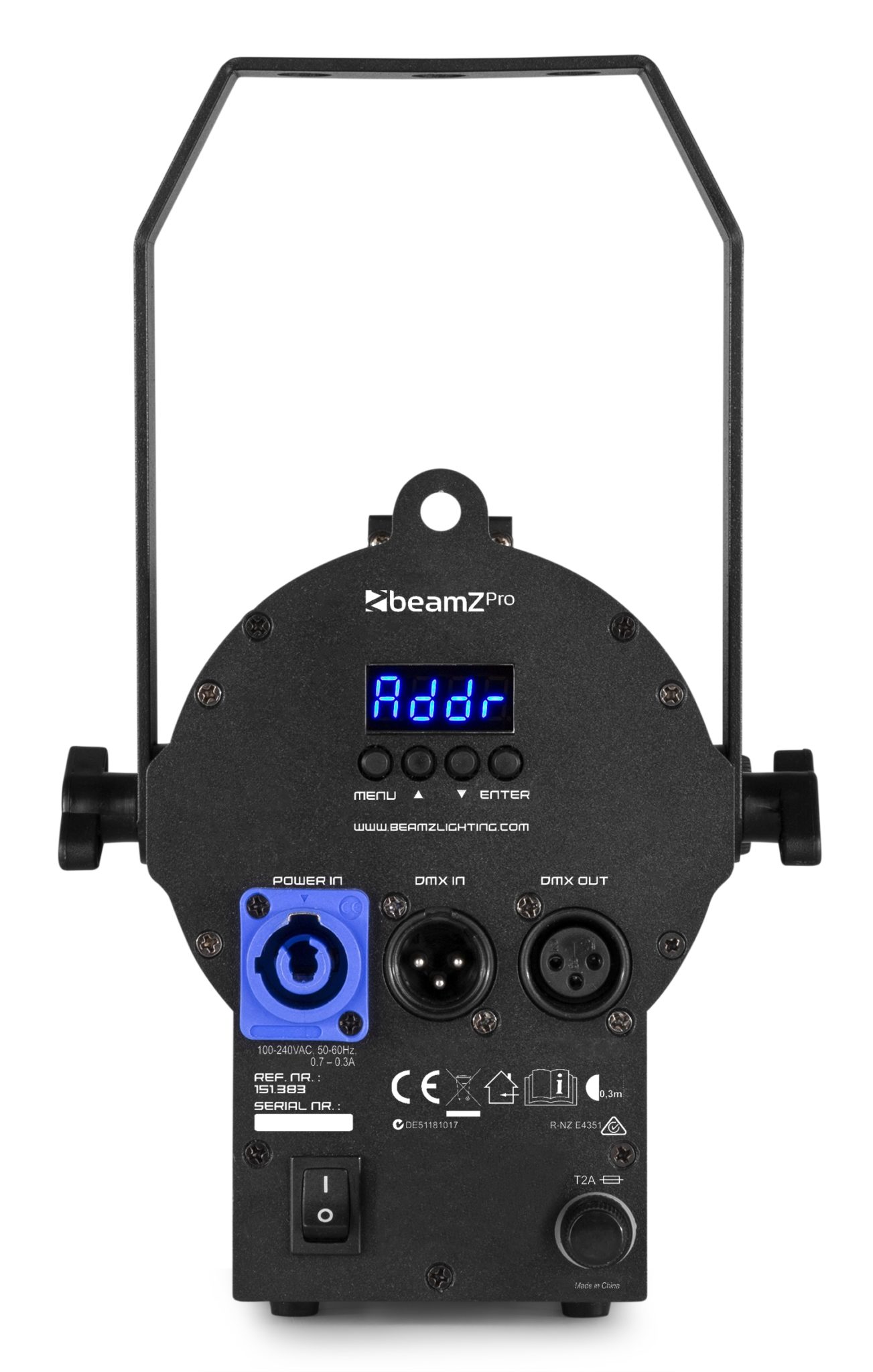

- Control Panel: LED Display
- DMX (3-pin) and manual control options
- Intelligent temperature control for silent operation
- Powerconnector in
- Including power cable, barndoor, safety cord and colour frame
Lightsource | 4-in-1 LED |
LED Colours | Red, Green, Blue, White |
LED Power (W) | 40 |
Colour temperature | 3000K – 8000K |
Quantity of LEDs | 1 |
Beam angle:min (degrees) | 25 |
Beam angle:max (degrees) | 80 |
Flash rate per second | 1 – 19Hz |
DMX Channels | 3, 4, 5, 6, 11 |
DMX Connector | 3-pin XLR |
Modes | DMX, Manual |
IP rating | IP20 |
Display | LED |
Power Plug | Power-connector |
Power consumption | 0.7 – 0.3A |
Power Supply | 100-240VAC 50/60Hz |
Dimensions (L x W x H) | 280 x 170 x 175mm |
Weight (kg) | 2.2000 |
Accessories | Mounting bracket, Power Cable, Safety cord |
